All diagrams for this model

2002 Scooter XQ125 - XQ125 (5HT4) [030] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

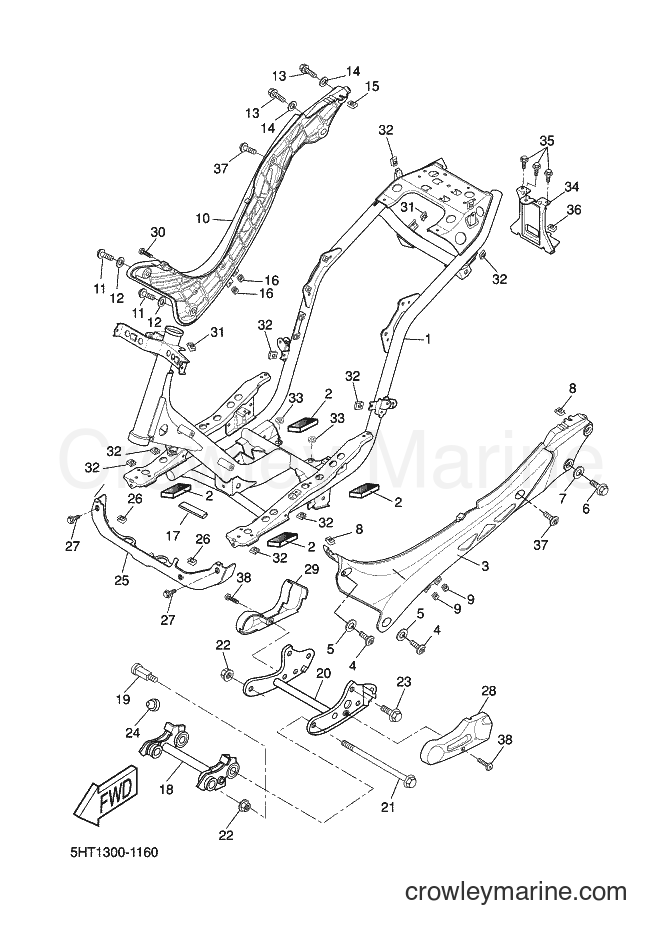

Yamaha Motors XQ125 (5HT4) [030] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 4
DAMPER
Price unavailable
3
Required: 1
SEAT, RAIL 1(L)
Price unavailable
BOLT,HEX. SOCKET BUT
4
Yamaha Motors
BOLT,HEX. SOCKET BUT90111-08084-00
Required: 2
BOLT
Supersedes: 90109-08718-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
5
Required: 2
WASHER, PLATE
Price unavailable
6
Required: 2
BOLT, WASHER BASED
Price unavailable
7
Required: 2
WASHER, PLATE
Price unavailable
Spring Nut
8
Yamaha Motors
Spring Nut90183-06X00-00
Required: 2
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Spring Nut
9
Yamaha Motors
Spring Nut90183-05X03-00
Required: 3
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
10
Required: 1
SEAT, RAIL 2 (R)
Price unavailable
BOLT,HEX. SOCKET BUT
11
Yamaha Motors
BOLT,HEX. SOCKET BUT90111-08084-00
Required: 2
BOLT
Supersedes: 90109-08718-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
12
Required: 2
WASHER, PLATE
Price unavailable
13
Required: 2
BOLT, WASHER BASED
Price unavailable
14
Required: 2
WASHER, PLATE
Price unavailable
Spring Nut
15
Yamaha Motors
Spring Nut90183-06X00-00
Required: 1
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Spring Nut
16
Yamaha Motors
Spring Nut90183-05X03-00
Required: 3
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
17
Required: 1
BAND
Price unavailable
18
Required: 1
ENGINE BRACKET COMP. 2
Price unavailable
19
Required: 2
BOLT, ENGINE MOUNTING 1
Price unavailable
20
Required: 1
ENGINE BRACKET COMP.
Price unavailable
21
Required: 1
SHAFT, PIVOT
Price unavailable
Self-Locking Nut
22
Yamaha Motors
Self-Locking Nut90185-10154-00
Required: 3
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
23
Required: 4
BOLT, WASHER BASED
Price unavailable
Seat Pad
24
Yamaha Motors
Seat Pad3VL-F4741-00-00
Required: 2
PAD, SEAT
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
25
Required: 1
BRACKET, RADIATOR
Price unavailable
Spring Nut
26
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
27
Required: 2
BOLT, WASHER BASED
Price unavailable
28
Required: 1
COVER
Price unavailable
29
Required: 1
COVER 2
Price unavailable
30
Required: 1
SCREW, BINDING
Price unavailable
Spring Nut
31
Yamaha Motors
Spring Nut90183-06X00-00
Required: 1
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Spring Nut
32
Yamaha Motors
Spring Nut90183-05X03-00
Required: 10
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
GROMMET, WATER TUBE (UPPER)
33
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-13014-00
Required: 2
GROMMET
Supersedes: 90480-13398-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
34
Required: 1
REAR STAY COMP.
Price unavailable
Flange Bolt
35
Yamaha Motors
Flange Bolt95817-06016-00
Required: 3
BOLT, WASHER BASED
Supersedes: 90105-06X00-00
Cross Ship
Leaves in 2-5 days
$1.95
$1.56
You save $0.39
More details
Spring Nut
36
Yamaha Motors
Spring Nut90183-06X00-00
Required: 1
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
37
Required: 2
BOLT
Price unavailable
38
Required: 2
SCREW, BINDING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
