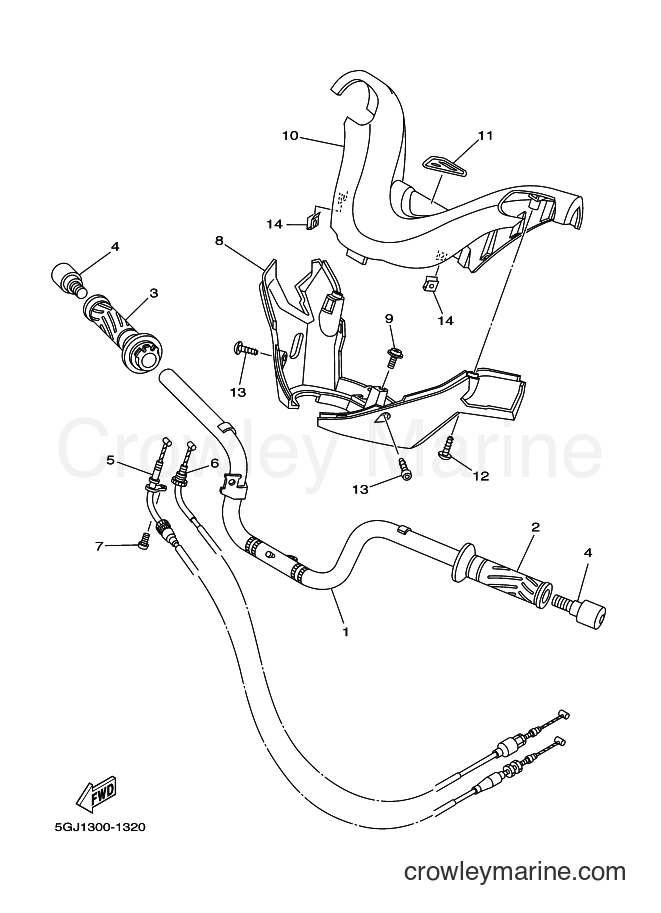

2002 Scooter XP500 - XP500 (5GJ5) [100] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XP500 (5GJ5) [100] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE COMP.
Price unavailable
Grip
2
Yamaha Motors
Grip4YR-26241-02-00
Required: 1
GRIP (LEFT)
Supersedes: 4YR-26241-01-00
Cross Ship
Leaves in 2-5 days
$19.99
$16.99
You save $3.00
More details
3
Required: 1
GRIP ASSY
Price unavailable
Grip End
4
Yamaha Motors
Grip End5GJ-26246-00-00
Required: 2
END, GRIP
Cross Ship
Leaves in 2-5 days
$31.99
$27.19
You save $4.80
More details
5
Required: 1
CABLE, THROTTLE 1
Price unavailable
6
Required: 1
CABLE, THROTTLE 2
Price unavailable
8
Required: 1
COVER, HANDLEBAR LOWER 1
Price unavailable
Screw With Washer
9
Yamaha Motors
Screw With Washer90159-05121-00
Required: 1
SCREW, WITH WASHER
Supersedes: 90159-05028-00
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details
10
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
11
Required: 1
EMBLEM
Price unavailable
Tapping Screw
12
Yamaha Motors
Tapping Screw90167-05080-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
Tapping Screw
13
Yamaha Motors
Tapping Screw90167-05079-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
