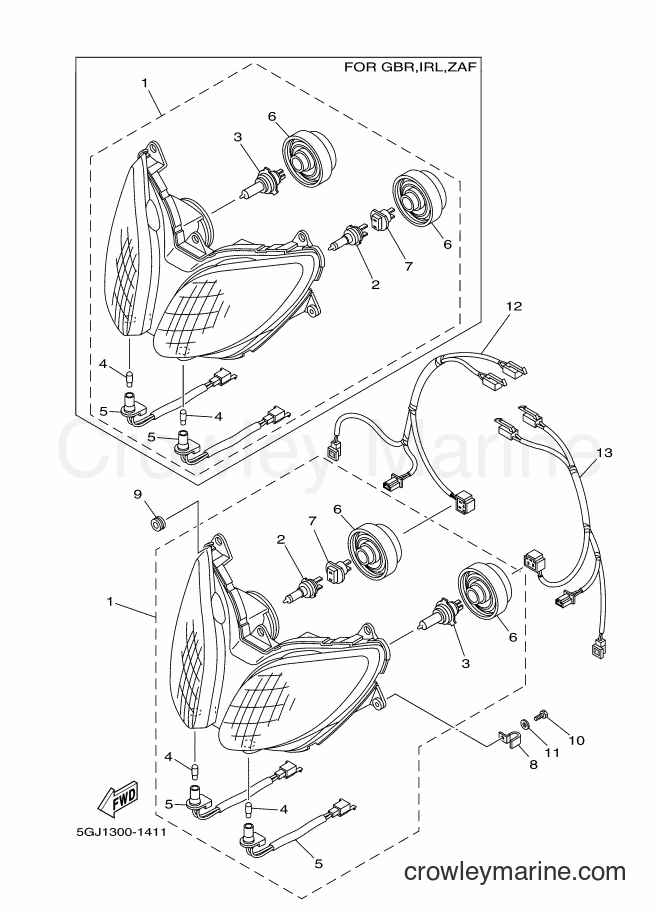

2002 Scooter XP500 - XP500 (5GJ5) [120] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XP500 (5GJ5) [120] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
1
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
BULB, HL HALOGEN H7
2
Yamaha Motors
BULB, HL HALOGEN H74SV-84314-00-00
Required: 1
. BULB (12V-55W)
Cross Ship
Leaves in 2-5 days
$58.99
$50.14
You save $8.85
More details
BULB (12V-5W)
4
Yamaha Motors
BULB (12V-5W)4SV-84347-00-00
Required: 2
. BULB (12V-5W)
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
5
Required: 2
. SOCKET CORD ASSY 1
Price unavailable
SOCKET COVER
6
Yamaha Motors
SOCKET COVER5GJ-84397-00-00
Required: 2
. COVER, SOCKET
Cross Ship
Leaves in 2-5 days
$36.99
$31.44
You save $5.55
More details
SOCKET CORD ASSEMBLY
7
Yamaha Motors
SOCKET CORD ASSEMBLY4SV-84350-00-00
Required: 1
. SOCKET CORD ASSY 2
Cross Ship
Leaves in 2-5 days
$21.99
$18.69
You save $3.30
More details
Clamp
8
Yamaha Motors
Clamp90462-05005-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Bolt
10
Yamaha Motors
Bolt97017-06025-00
Required: 2
BOLT
Supersedes: 97007-06025-00
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details
12
Required: 1
CORD, HEADLIGHT
Price unavailable
13
Required: 1
CORD, HEADLIGHT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
