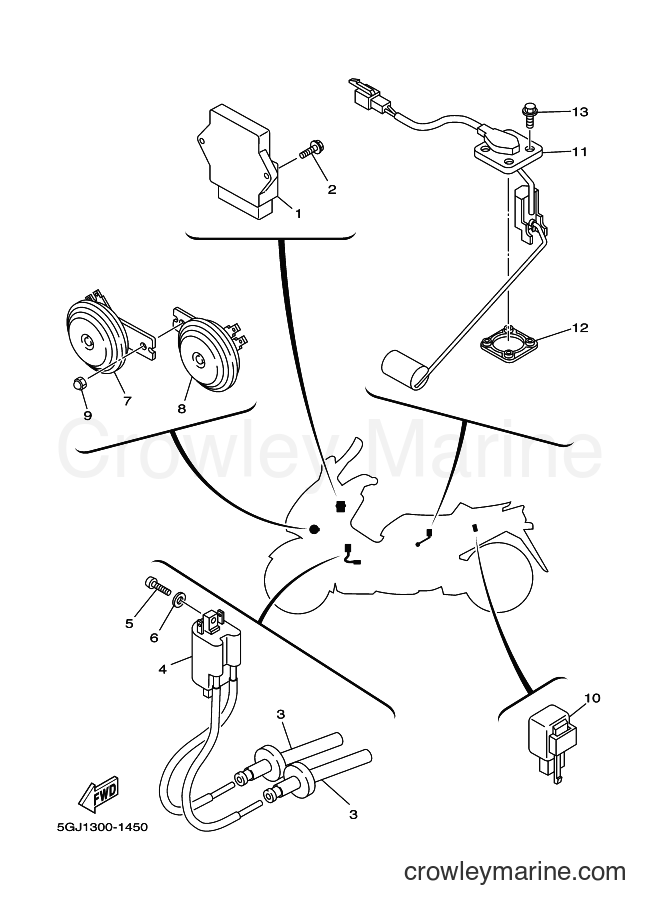

2002 Scooter XP500 - XP500 (5GJ5) [130] ELECTRICAL 2 diagram
![Yamaha Motors XP500 (5GJ5) [130] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/U2ljZThn.png)
1
Required: 1
IGNITOR UNIT ASSY
Price unavailable
2
Yamaha Motors
Tapping Screw97707-60025-00
Required: 2
SCREW, TAPPING
$1.57
You save $0.28
$146.19
You save $25.80
4
Required: 1
IGNITION COIL ASSY
Price unavailable
5
Yamaha Motors
Pan Head Screw98517-06020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06020-00
In stock
Only 5 remaining
$2.00
You save $0.35
6
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$0.85
You save $0.15
7
Required: 1
HORN
Price unavailable
8
Required: 1
HORN
Price unavailable
$5.52
You save $0.97
10
Yamaha Motors
FLASHER RELAY ASSY3GM-83350-03-00
Required: 1
FLASHER RELAY ASSY
Supersedes: 3GM-83350-01-00
$75.64
You save $13.35
11
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
12
Yamaha Motors
Sender Unit Gasket5G3-85753-00-00
Required: 1
GASKET, SENDER UNIT
$16.14
You save $2.85
13
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, WITH WASHER
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
