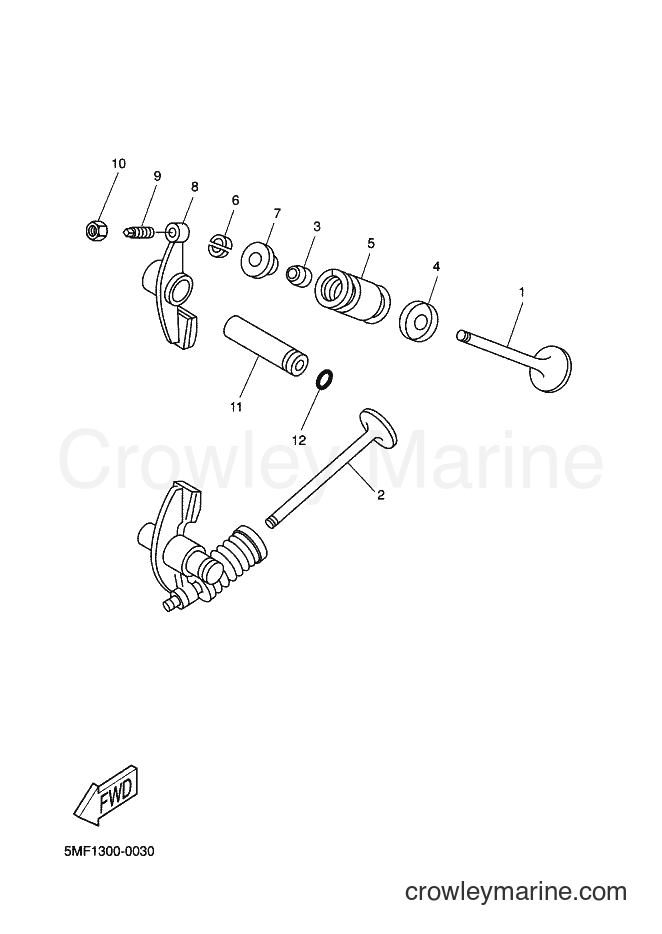

2002 Scooter XN150 - XN150 (5PR3) [010] VALVE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XN150 (5PR3) [010] - VALVE
Change View:
1
Required: 1
VALVE, INTAKE
Price unavailable
2
Required: 1
VALVE, EXHAUST
Price unavailable
Exhaust Seal
3
Yamaha Motors
Exhaust Seal4TE-12119-00-00
Required: 2
SEAL, VALVE STEM
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
Valve Spring Seat
4
Yamaha Motors
Valve Spring Seat1WG-12116-00-00
Required: 2
SEAT, VALVE SPRING
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
Valve Inner Spring
5
Yamaha Motors
Valve Inner Spring1WG-12113-01-00
Required: 2
SPRING, VALVE INNER
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
Valve Cotter
6
Yamaha Motors
Valve Cotter1WG-12118-00-00
Required: 4
COTTER, VALVE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
RETAINER, VALVE SP
7
Yamaha Motors
RETAINER, VALVE SP3UH-12117-00-00
Required: 2
RETAINER, VALVE SPRING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
8
Required: 2
ARM, VALVE ROCKER
Price unavailable
11
Required: 2
SHAFT, ROCKER 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
