2002 Scooter XN150 - XN150 (5PR3) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

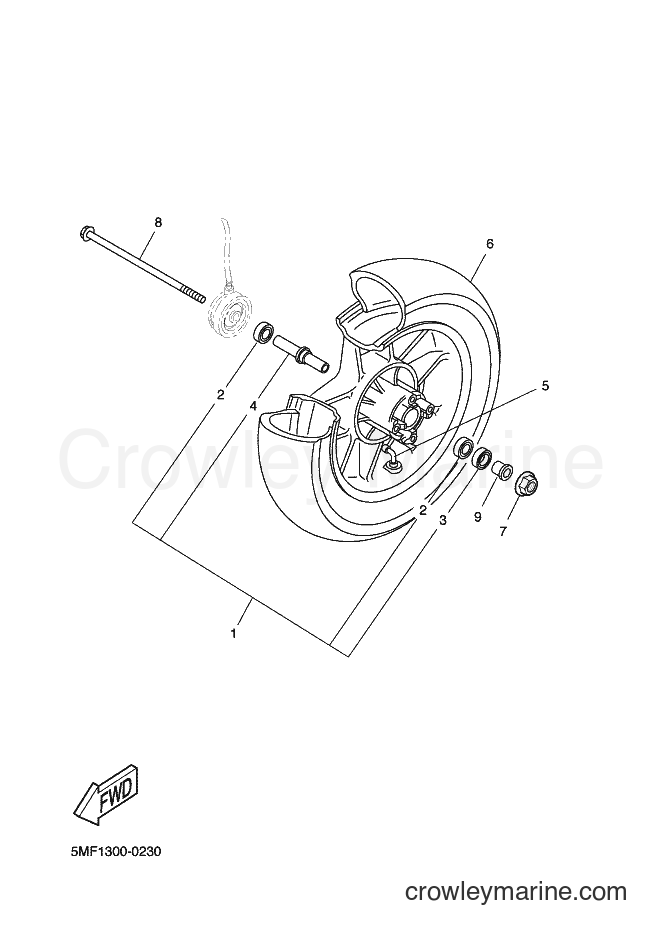

Yamaha Motors XN150 (5PR3) [010] - FRONT WHEEL
Change View:
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
BEARING
2
Yamaha Motors
BEARING93306-20117-00
Required: 2
. BEARING
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
3
Required: 1
. OIL SEAL
Price unavailable
4
Required: 1
. SPACER, BEARING
Price unavailable
Air Valve Assembly
5
Yamaha Motors
Air Valve Assembly3VL-F5170-10-00
Required: 1
AIR VALVE ASSY
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
6
Required: 1
TIRE
Price unavailable
FLANGE NUT
7
Yamaha Motors
FLANGE NUT95607-12200-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
8
Required: 1
AXLE, WHEEL
Price unavailable
9
Required: 1
SPACER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
