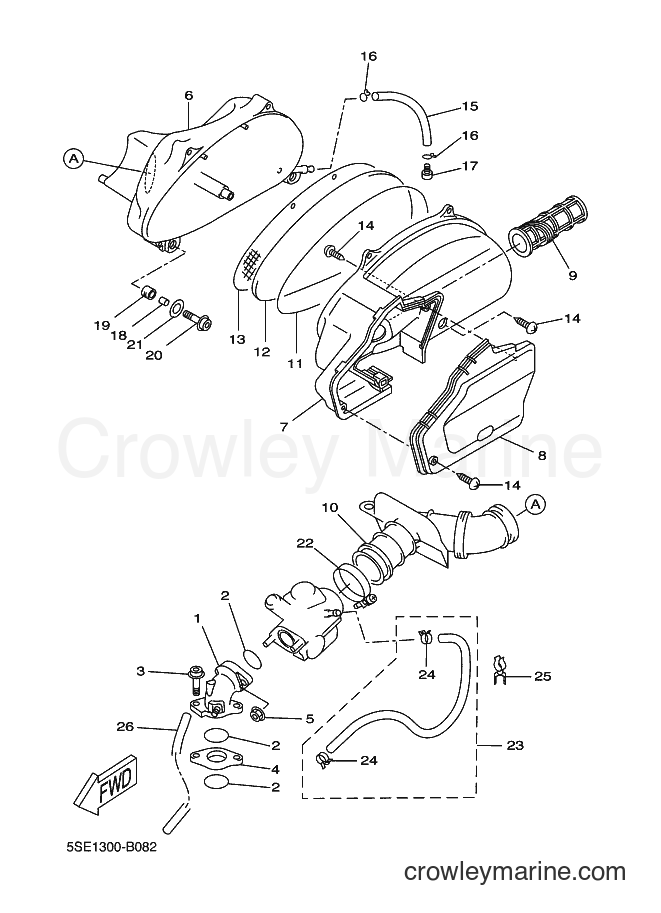

2002 Scooter VP300 - VP300 (5SE2) [030] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VP300 (5SE2) [030] - INTAKE
Change View:
1
Required: 1
JOINT, CARBURETOR 1
Price unavailable
O-Ring
2
Yamaha Motors
O-Ring93210-35537-00
Required: 3
O-RING
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
3
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
4
Required: 1
JOINT
Price unavailable
5
Required: 2
NUT
Price unavailable
6
Required: 1
CASE, AIR CLEANER 1
Price unavailable
7
Required: 1
CAP, CLEANER CASE 1
Price unavailable
8
Required: 1
COVER, CLEANER CASE 1
Price unavailable
9
Required: 1
DUCT
Price unavailable
10
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
11
Required: 1
SEAL
Price unavailable
12
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
13
Required: 1
PLATE, ELEMENT
Price unavailable
14
Required: 8
SCREW
Price unavailable
15
Required: 1
HOSE
Price unavailable
16
Required: 2
CLIP
Price unavailable
17
Required: 1
COVER, DRAIN VALVE
Price unavailable
18
Required: 2
COLLAR
Price unavailable
19
Required: 4
GROMMET
Price unavailable
20
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
21
Required: 2
WASHER, PLATE
Price unavailable
22
Required: 1
BAND
Price unavailable
23
Required: 1
PIPE 2
Price unavailable
24
Required: 2
. CLIP
Price unavailable
25
Required: 2
CLAMP
Price unavailable
26
Required: 1
HOSE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
