All diagrams for this model

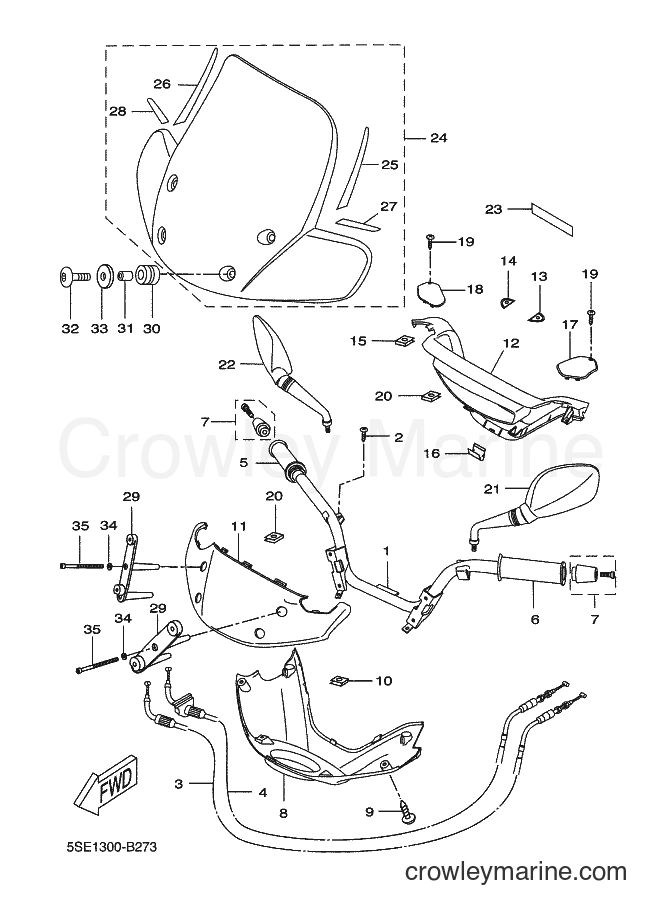

2002 Scooter VP300 - VP300 (5SE1) [040] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VP300 (5SE1) [040] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE COMP.
Price unavailable
Tapping Screw
2
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details
3
Required: 1
CABLE, THROTTLE 1
Price unavailable
4
Required: 1
CABLE, THROTTLE 2
Price unavailable
5
Required: 1
GRIP ASSY
Price unavailable
6
Required: 1
GRIP
Price unavailable
7
Required: 2
END, GRIP
Price unavailable
8
Required: 1
COVER, HANDLEBAR UPPER 2
Price unavailable
Tapping Screw
9
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details
Spring Nut
10
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
11
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
12
Required: 1
COVER, UPPER
Price unavailable
13
Required: 1
CAP
Price unavailable
14
Required: 1
CAP 2
Price unavailable
15
Required: 2
NUT, SPRING
Price unavailable
16
Required: 4
CLAMP
Price unavailable
17
Required: 1
CAP, CABLE CONNECTOR
Price unavailable
18
Required: 1
CAP
Price unavailable
19
Required: 2
SCREW, TAPPING
Price unavailable
Spring Nut
20
Yamaha Motors
Spring Nut90183-05X03-00
Required: 8
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
21
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
22
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
23
Required: 1
LABEL, WARNING
Price unavailable
23
Required: 1
LABEL, WARNING
Price unavailable
23
Required: 1
LABEL, WARNING
Price unavailable
23
Required: 1
LABEL, WARNING
Price unavailable
24
Required: 1
WINDSCREEN ASSY
Price unavailable
25
Required: 1
. GRAPHIC 1
Price unavailable
26
Required: 1
. GRAPHIC 2
Price unavailable
27
Required: 1
. GRAPHIC 3
Price unavailable
28
Required: 1
. GRAPHIC 4
Price unavailable
29
Required: 2
BRACKET 5
Price unavailable
30
Required: 4
GROMMET
Price unavailable
31
Required: 4
COLLAR
Price unavailable
32
Required: 4
BOLT,HEX. SOCKET BUTTON
Price unavailable
Washer Plain
33
Yamaha Motors
Washer Plain90201-06X02-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
Plain Washer
34
Yamaha Motors
Plain Washer90201-06X01-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.15
$2.68
You save $0.47
More details
35
Required: 4
BOLT, HEXAGON SOCKET HEAD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
