2002 Scooter TZR50 - TZR50 (4YV6) [010] SHIFT CAM & FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

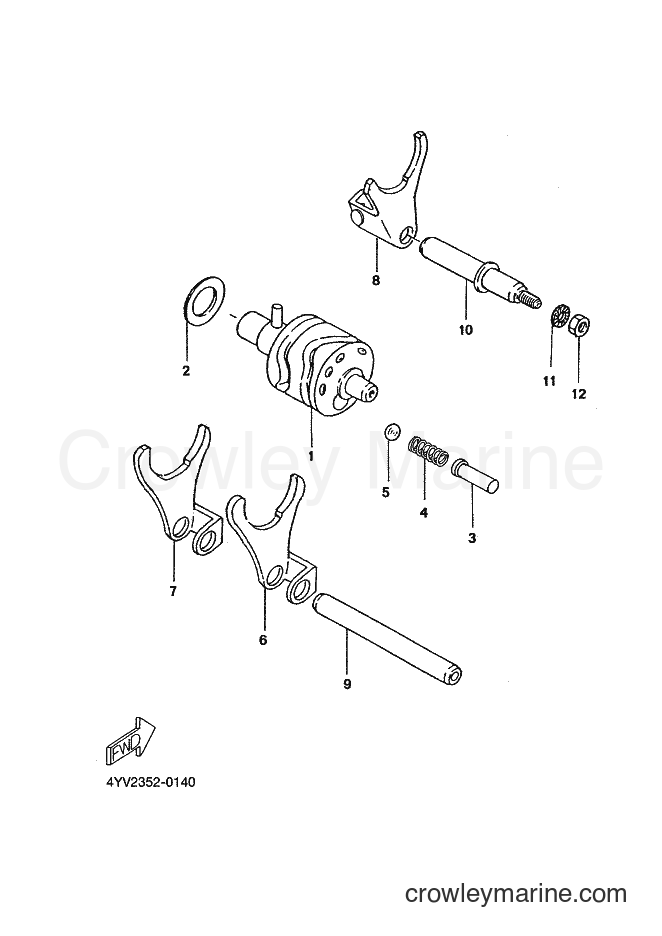

Yamaha Motors TZR50 (4YV6) [010] - SHIFT CAM & FORK
Change View:
1
Required: 1
SHIFT CAM ASSY
Price unavailable
2
Required: 1
WASHER, PLATE
Price unavailable
3
Required: 1
POINT, NEUTRAL
Price unavailable
4
Required: 1
SPRING, COMPRESSION
Price unavailable
5
Required: 1
BALL
Price unavailable
6
Required: 1
FORK, SHIFT 1
Price unavailable
7
Required: 1
FORK, SHIFT 2
Price unavailable
8
Required: 1
FORK, SHIFT 3
Price unavailable
9
Required: 1
BAR, SHIFT FORK GUIDE 1
Price unavailable
10
Required: 1
BAR, SHIFT FORK GUIDE 2
Price unavailable
11
Required: 1
WASHER, TOOTH
Price unavailable
12
Required: 1
NUT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
