2002 Scooter T105SE - T105SE (5SD1) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

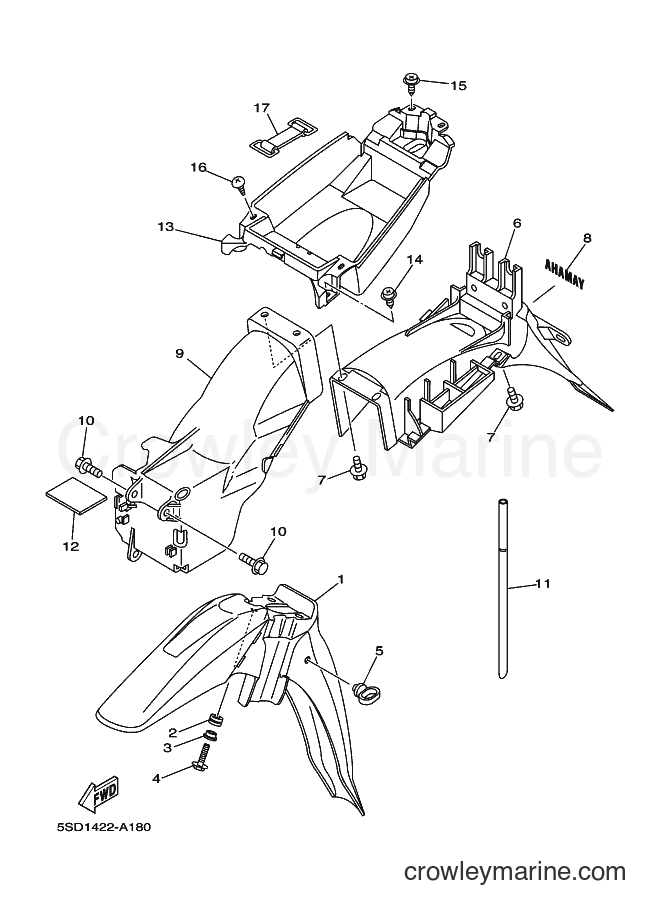

Yamaha Motors T105SE (5SD1) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
3
Required: 3
COLLAR
Price unavailable
4
Required: 3
BOLT, WITH WASHER
Price unavailable
5
Required: 1
HOLDER, CABLE
Price unavailable
6
Required: 1
FENDER, REAR
Price unavailable
Bolt with Washer
7
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
YAMAHA EMBLEM
8
Yamaha Motors
YAMAHA EMBLEM99241-00080-00
Required: 1
EMBLEM, YAMAHA
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
9
Required: 1
GUARD, MUD
Price unavailable
Bolt with Washer
10
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 3
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Hose
11
Yamaha Motors
Hose90445-08684-00
Required: 1
HOSE (L330)
Supersedes: 90445-08170-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
12
Required: 1
DAMPER 1
Price unavailable
13
Required: 1
BOX
Price unavailable
Screw with Washer
14
Yamaha Motors
Screw with Washer90159-06181-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$4.00
$3.40
You save $0.60
More details
Screw with Washer
15
Yamaha Motors
Screw with Washer90159-06067-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Truss Screw
16
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
17
Required: 1
BAND, BATTERY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
