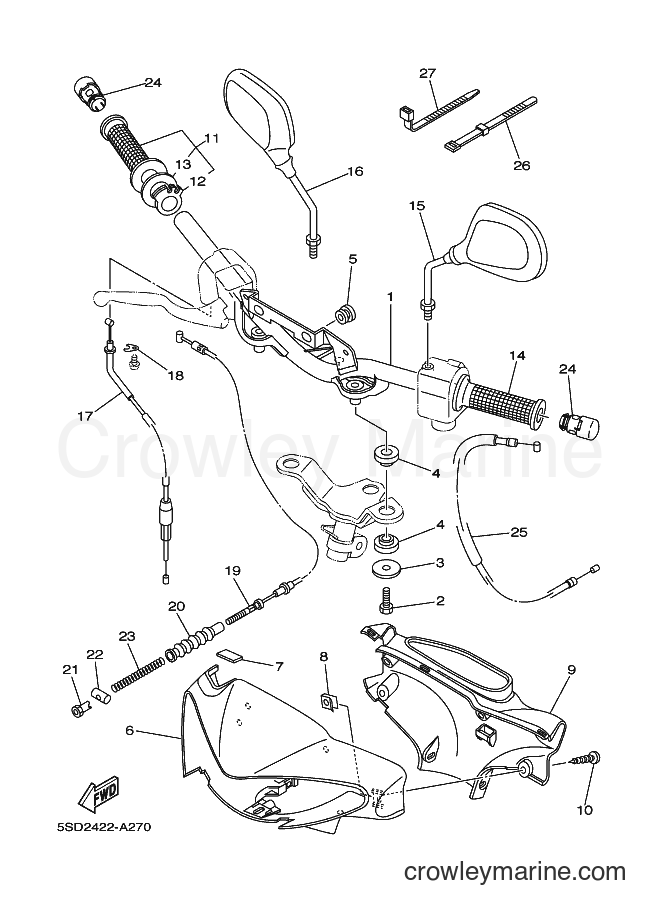

2002 Scooter T105E - T105E (5SD2) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T105E (5SD2) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE
Price unavailable
Bolt
2
Yamaha Motors
Bolt97017-08016-00
Required: 3
BOLT
Supersedes: 97007-08016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
3
Yamaha Motors
Plate Washer90201-08612-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
4
Required: 6
DAMPER
Price unavailable
Grommet
5
Yamaha Motors
Grommet90480-01558-00
Required: 2
GROMMET
Supersedes: 90480-01868-00
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
6
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
7
Required: 2
DAMPER
Price unavailable
9
Required: 1
COVER, HANDLEBAR UPPER 2
Price unavailable
Truss Screw
10
Yamaha Motors
Truss Screw97707-50014-00
Required: 6
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 1
GRIP ASSY
Price unavailable
12
Required: 1
. TUBE, THROTTLE GUIDE
Price unavailable
Plate Washer
13
Yamaha Motors
Plate Washer90201-261L1-00
Required: 1
. WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
14
Required: 1
GRIP
Price unavailable
15
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
16
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
17
Required: 1
CABLE, THROTTLE 1
Price unavailable
18
Required: 1
HOLDER
Price unavailable
19
Required: 1
CABLE, BRAKE
Price unavailable
20
Required: 1
BOOT, CABLE
Price unavailable
Special Shape Nut
21
Yamaha Motors
Special Shape Nut90179-06411-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Compression Spring
23
Yamaha Motors
Compression Spring90501-10073-00
Required: 1
SPRING, COMPRESSION
Cross Ship
Leaves in 2-5 days
$3.75
$3.19
You save $0.56
More details
24
Required: 2
END, GRIP
Price unavailable
25
Required: 1
CABLE, STARTER 1
Price unavailable
Switch Cord Band
26
Yamaha Motors
Switch Cord Band437-83936-11-00
Required: 2
BAND, SWITCH CORD
Supersedes: 3TB-83936-00-00
Cross Ship
Leaves in 2-5 days
$5.00
$4.25
You save $0.75
More details
Clamp
27
Yamaha Motors
Clamp90464-15195-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$4.41
$3.75
You save $0.66
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
