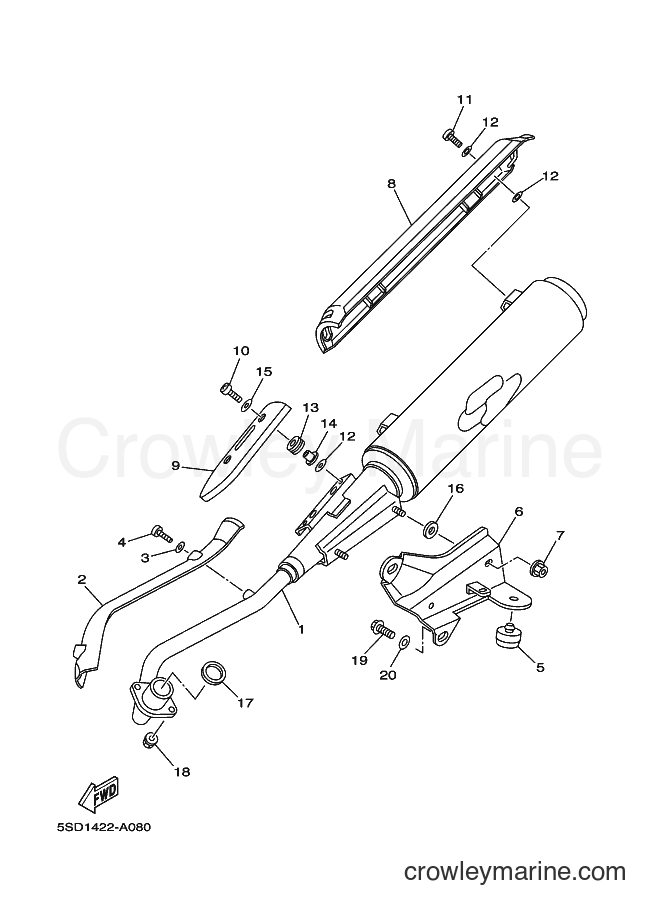

2002 Scooter T105E - T105E (5SD2) [010] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T105E (5SD2) [010] - EXHAUST
Change View:
1
Required: 1
MUFFLER 1
Price unavailable
2
Required: 1
PROTECTOR, EXHAUST PIPE
Price unavailable
Plain Washer
3
Yamaha Motors
Plain Washer92990-06200-00
Required: 2
WASHER, PLAIN
Supersedes: 92903-06200-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
5
Required: 1
PAD, SEAT
Price unavailable
6
Required: 1
STAY, MUFFLER 2
Price unavailable
Flange Nut
7
Yamaha Motors
Flange Nut95707-08500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
8
Required: 1
PROTECTOR, MUFFLER 1
Price unavailable
9
Required: 1
PROTECTOR, MUFFLER 2
Price unavailable
Bind Screw
10
Yamaha Motors
Bind Screw98980-06016-00
Required: 2
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
WASHER PROTECTOR
12
Yamaha Motors
WASHER PROTECTOR4BD-14766-00-00
Required: 6
WASHER, PROTECTOR
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
GROMMET (4HX)
13
Yamaha Motors
GROMMET (4HX)90480-12579-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Main Stand Collar
14
Yamaha Motors
Main Stand Collar90387-061V4-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Plain Washer
15
Yamaha Motors
Plain Washer 90201-06050-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$2.50
$2.13
You save $0.38
More details
Plate Washer
16
Yamaha Motors
Plate Washer90201-08326-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
17
Required: 1
GASKET, EXHAUST PIPE
Price unavailable
Flange Nut
18
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
Plain Washer
20
Yamaha Motors
Plain Washer90201-112U0-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
