2002 Scooter T105E - T105E (5SD2) [010] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

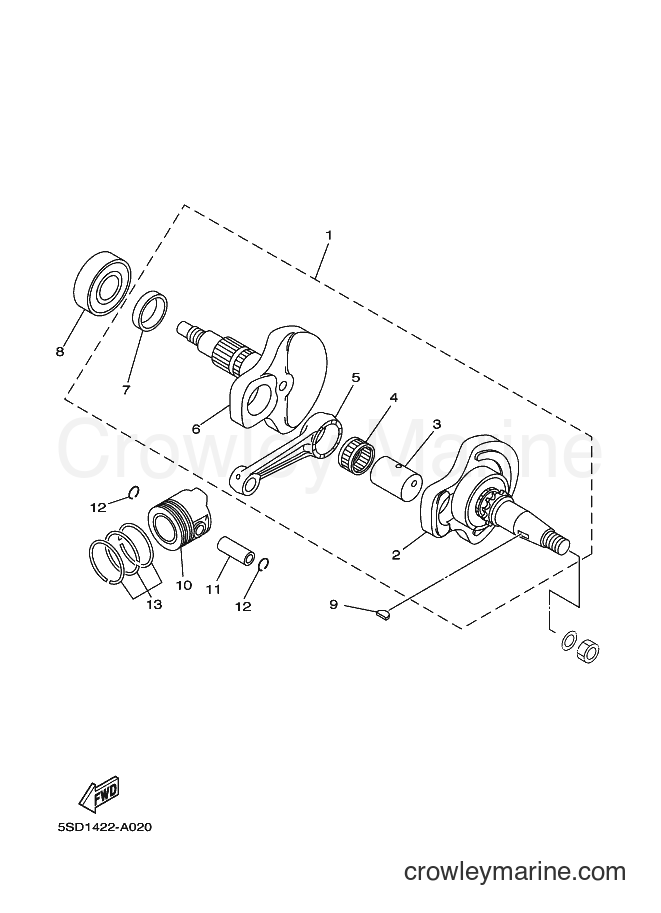

Yamaha Motors T105E (5SD2) [010] - CRANKSHAFT & PISTON
Change View:
1
Required: 1
CRANKSHAFT ASSY
Price unavailable
2
Required: 1
. CRANK 1
Price unavailable
Crank Pin 1
3
Yamaha Motors
Crank Pin 14GL-11681-10-00
Required: 1
. PIN, CRANK 1
Supersedes: 4GL-11681-00-00
Cross Ship
Leaves in 2-5 days
$42.99
$36.54
You save $6.45
More details
BEARING
4
Yamaha Motors
BEARING93310-326M9-00
Required: 1
. BEARING
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
5
Required: 1
. ROD, CONNECTING
Price unavailable
6
Required: 1
. CRANK 2
Price unavailable
Spacer
7
Yamaha Motors
Spacer5DV-11445-00-00
Required: 1
. SPACER
Cross Ship
Leaves in 2-5 days
$30.99
$26.34
You save $4.65
More details
BEARING
8
Yamaha Motors
BEARING93306-20595-00
Required: 1
BEARING
Cross Ship
Leaves in 2-5 days
$24.99
$21.24
You save $3.75
More details
Woodruff Key
9
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
10
Required: 1
PISTON (0.75MM O/S)
Price unavailable
10
Required: 1
PISTON (1.00MM O/S)
Price unavailable
10
Required: 1
PISTON (STD)
Price unavailable
10
Required: 1
PISTON (0.50MM O/S)
Price unavailable
10
Required: 1
PISTON (0.25MM O/S)
Price unavailable
Piston Pin
11
Yamaha Motors
Piston Pin22K-11633-01-00
Required: 1
PIN, PISTON
Cross Ship
Leaves in 2-5 days
$31.99
$27.19
You save $4.80
More details
Circle Clip
12
Yamaha Motors
Circle Clip93450-14088-00
Required: 2
CIRCLIP
Cross Ship
Leaves in 2-5 days
$4.40
$3.74
You save $0.66
More details
13
Required: 1
PISTON RING SET (STD)
Price unavailable
13
Required: 1
PISTON RING SET (1.00MM O/S)
Price unavailable
13
Required: 1
PISTON RING SET (0.25MM O/S)
Price unavailable
13
Required: 1
PISTON RING SET (0.50MM O/S)
Price unavailable
13
Required: 1
PISTON RING SET (0.75MM O/S)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
