2002 Scooter EW50 - EW50 (5JH6) [030] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

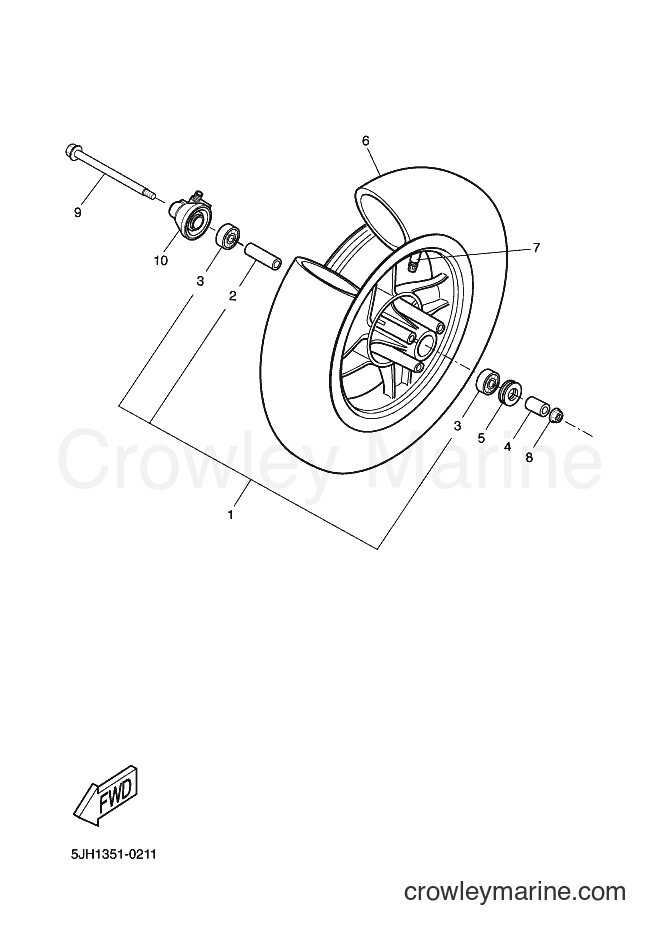

Yamaha Motors EW50 (5JH6) [030] - FRONT WHEEL
Change View:
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
BEARING SPACER
2
Yamaha Motors
BEARING SPACER4SB-F5117-00-00
Required: 1
. SPACER, BEARING
Cross Ship
Leaves in 2-5 days
$12.99
$11.04
You save $1.95
More details
BEARING
3
Yamaha Motors
BEARING93306-300Y8-00
Required: 2
. BEARING
Cross Ship
Leaves in 2-5 days
$42.99
$36.54
You save $6.45
More details
4
Required: 1
COLLAR
Price unavailable
DD-Type Oil Seal
5
Yamaha Motors
DD-Type Oil Seal93106-20001-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$2.50
$2.13
You save $0.38
More details
6
Required: 1
TIRE
Price unavailable
7
Required: 1
AIR VALVE ASSY
Price unavailable
9
Required: 1
SHAFT, PIVOT
Price unavailable
10
Required: 1
GEAR UNIT ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
