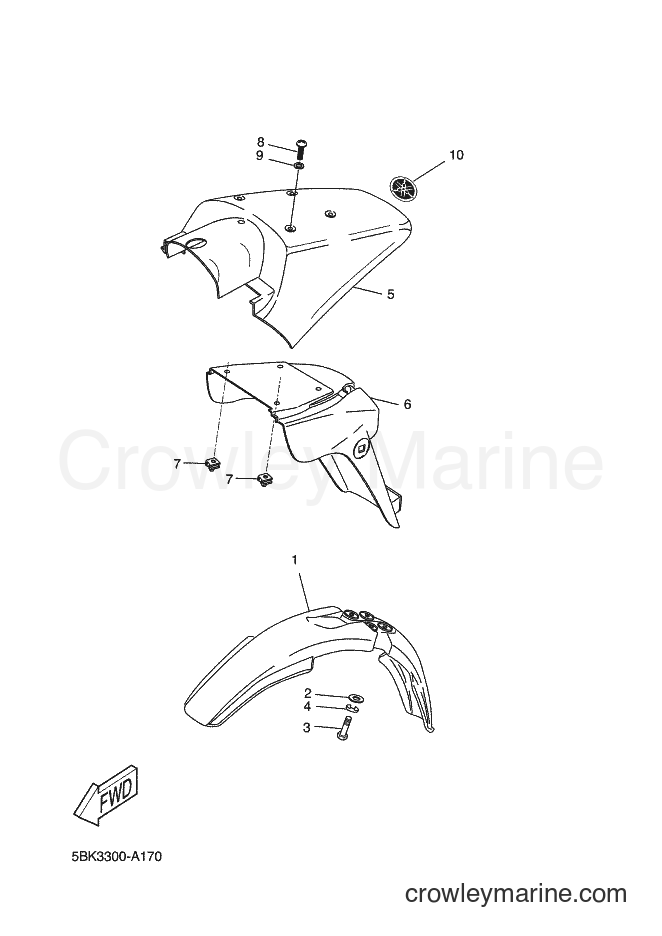

2002 Scooter DT50R - DT50R (5BK3) [020] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors DT50R (5BK3) [020] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
1
Required: 1
FENDER, FRONT
Price unavailable
3
Required: 4
SCREW
Price unavailable
WASHER, TOOTH
4
Yamaha Motors
WASHER, TOOTH90205-06X00-00
Required: 4
WASHER, TOOTH
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details
5
Required: 1
FENDER, REAR
Price unavailable
6
Required: 1
FLAP
Price unavailable
Spring Nut
7
Yamaha Motors
Spring Nut90183-06X00-00
Required: 4
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
8
Required: 4
BOLT 1
Price unavailable
9
Required: 4
WASHER, WAVE
Price unavailable
10
Required: 1
EMBLEM
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
