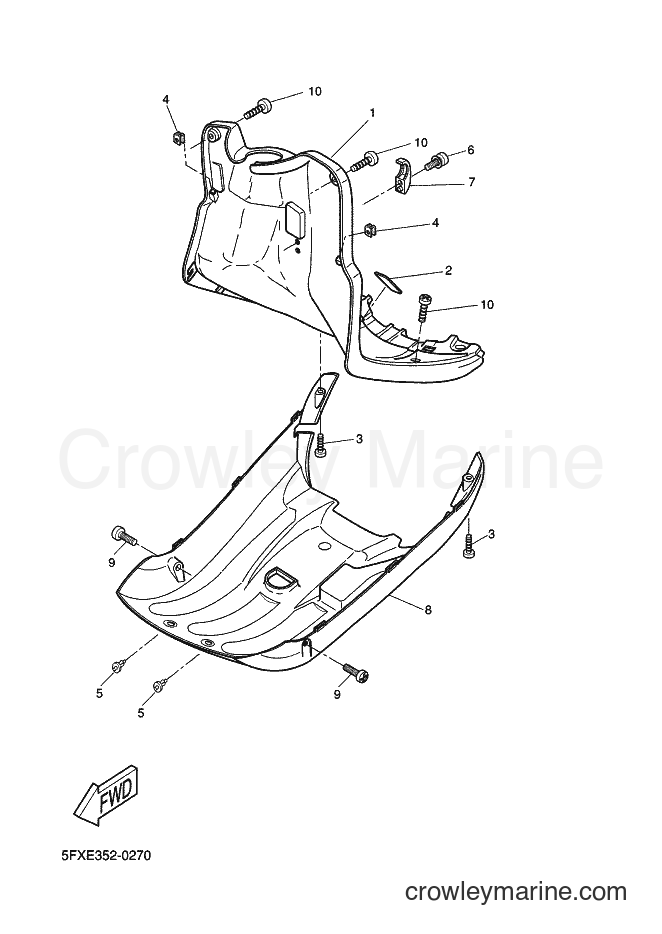

2002 Scooter CW50RS - CW50RS (5FXS) [040] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50RS (5FXS) [040] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 2
Price unavailable
Cap
2
Yamaha Motors
Cap3WV-F8349-10-00
Required: 1
CAP
Cross Ship
Leaves in 2-5 days
$19.49
$16.57
You save $2.92
More details
Tapping Screw
3
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details
Spring Nut
4
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
5
Required: 2
RIVET
Price unavailable
6
Required: 1
SCREW, BINDING
Price unavailable
7
Required: 1
HANGER, HELMET
Price unavailable
8
Required: 1
COVER, LOWER
Price unavailable
8
Required: 1
COVER, LOWER
Price unavailable
8
Required: 1
COVER, LOWER
Price unavailable
8
Required: 1
COVER, LOWER
Price unavailable
8
Required: 1
COVER, LOWER
Price unavailable
8
Required: 1
COVER, LOWER
Price unavailable
9
Required: 2
SCREW, SPECIAL
Price unavailable
Tapping Screw
10
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
