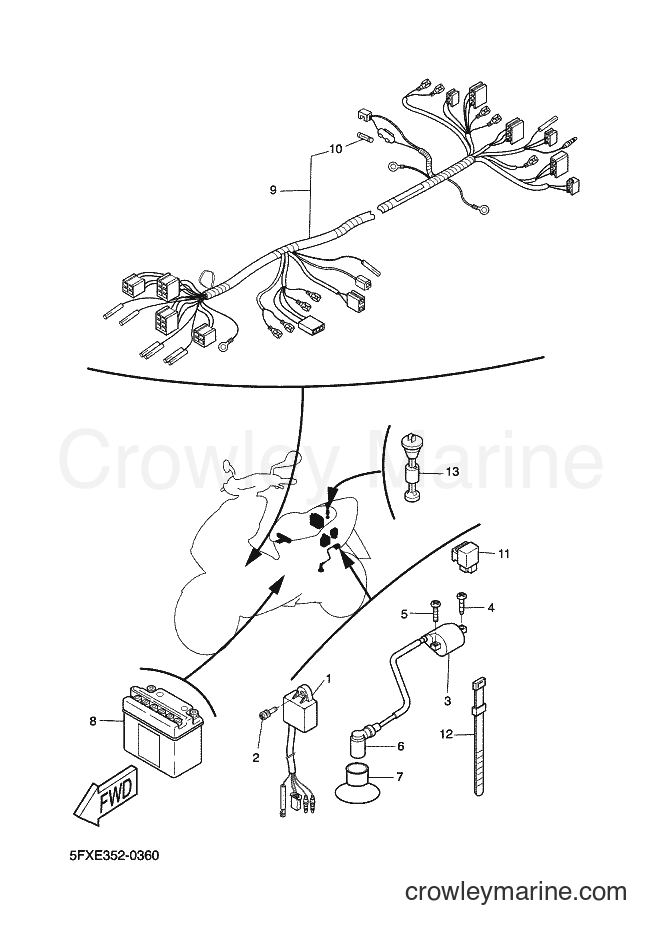

2002 Scooter CW50RS - CW50RS (5FXS) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50RS (5FXS) [010] - ELECTRICAL 2
Change View:
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Required: 1
SCREW, BINDING
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
Hexagon Screw
4
Yamaha Motors
Hexagon Screw90153-06034-00
Required: 1
SCREW, HEXAGON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Hexagon Bolt
5
Yamaha Motors
Hexagon Bolt97017-06016-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plug Cap Assembly
6
Yamaha Motors
Plug Cap AssemblySPC-LB05F-00-00
Required: 1
PLUG CAP ASSY
Supersedes: 3WG-H2370-10-00
Cross Ship
Leaves in 2-5 days
$28.99
$24.64
You save $4.35
More details
Plug Cap Seal
7
Yamaha Motors
Plug Cap Seal3WG-H2372-00-00
Required: 1
SEAL, PLUG CAP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
8
Required: 1
BATTERY ASSY
Price unavailable
9
Required: 1
WIRE HARNESS ASSY
Price unavailable
Fuse (12V/10A)
10
Yamaha Motors
Fuse (12V/10A)27V-82151-00-00
Required: 1
. FUSE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
Relay Assembly
11
Yamaha Motors
Relay Assembly29U-81950-93-00
Required: 1
RELAY ASSY
Cross Ship
Leaves in 2-5 days
$84.99
$72.24
You save $12.75
More details
Switch Cord Band
12
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 8
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
13
Required: 1
OIL LEVEL GAUGE ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
