2002 Scooter CW50L - CW50L (5RY2) [010] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

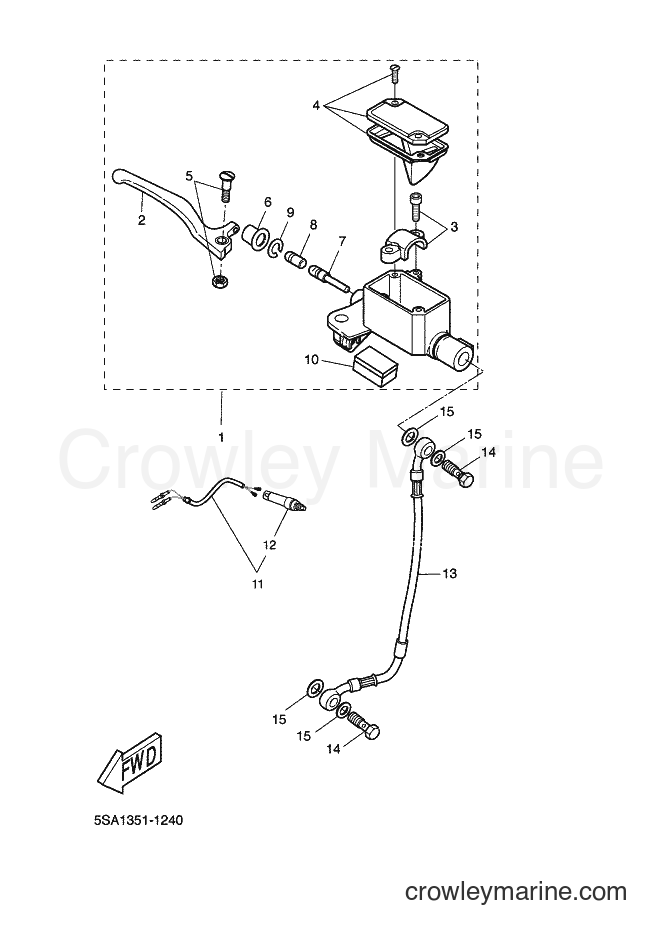

Yamaha Motors CW50L (5RY2) [010] - FRONT MASTER CYLINDER
Change View:
1
Required: 1
MASTER CYLINDER ASSY
Price unavailable
2
Required: 1
. LEVER 2
Price unavailable
3
Required: 1
. BRACKET, MASTER CYLINDER
Price unavailable
4
Required: 1
. CAP, RESERVOIR
Price unavailable
5
Required: 1
. BOLT, LEVER
Price unavailable
6
Required: 1
. BOOT
Price unavailable
7
Required: 1
. PISTON, MASTER CYLINDER
Price unavailable
8
Required: 1
. PIN, PAD
Price unavailable
9
Required: 1
. CLIP
Price unavailable
10
Required: 1
. MASTER CYLINDER SUB ASSY
Price unavailable
FRONT STOP SWITCH ASSY
11
Yamaha Motors
FRONT STOP SWITCH ASSY5JH-H3980-01-00
Required: 1
FRONT STOP SWITCH ASSY
Supersedes: 5JH-H3980-00-00
Cross Ship
Leaves in 2-5 days
$28.99
$24.64
You save $4.35
More details
12
Required: 1
. FRONT STOP SWITCH ASSY
Price unavailable
BRAKE HOSE 1
13
Yamaha Motors
BRAKE HOSE 14VV-F5872-10-00
Required: 1
HOSE, BRAKE 1
Cross Ship
Leaves in 2-5 days
$140.99
$119.84
You save $21.15
More details
14
Required: 1
BOLT, UNION
Price unavailable
Plain Washer
15
Yamaha Motors
Plain Washer90201-10X03-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
