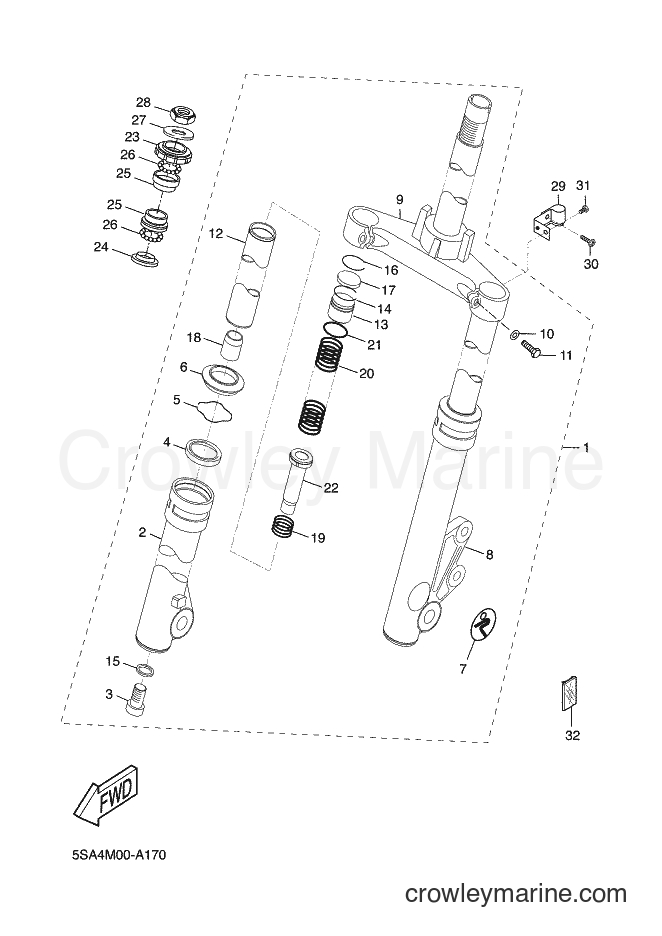

2002 Scooter CW50 - CW50 (5RH1) [010] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50 (5RH1) [010] - FRONT FORK
Change View:
Front Fork Assembly
1
Yamaha Motors
Front Fork Assembly4VU-F3100-20-00
Required: 1
FRONT FORK ASSY
Cross Ship
Leaves in 2-5 days
$786.99
$668.94
You save $118.05
More details
2
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
3
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
4
Required: 2
. OIL SEAL
Price unavailable
5
Required: 2
. CLIP, OIL SEAL
Price unavailable
6
Required: 2
. SEAL, DUST
Price unavailable
7
Required: 2
. EMBLEM
Price unavailable
8
Required: 2
. TUBE, OUTER (LEFT)
Price unavailable
9
Required: 1
. UNDER BRACKET COMP.
Price unavailable
10
Required: 2
. WASHER, CAP
Price unavailable
11
Required: 2
. BOLT, SPECIAL
Price unavailable
12
Required: 2
. INNER TUBE COMP.1
Price unavailable
13
Required: 2
. BOLT, CAP
Price unavailable
14
Required: 2
. CIRCLIP
Price unavailable
15
Required: 2
. WASHER, FELT
Price unavailable
16
Required: 2
. RING, SNAP
Price unavailable
17
Required: 2
. PLUG, INNER TUBE
Price unavailable
18
Required: 2
. SPINDLE, TAPER
Price unavailable
19
Required: 2
. SPRING, REBOUND
Price unavailable
20
Required: 2
. SPRING, FRONT FORK
Price unavailable
21
Required: 2
. O-RING
Price unavailable
22
Required: 2
. PISTON, FRONT FORK
Price unavailable
23
Required: 1
RACE, BALL 1
Price unavailable
24
Required: 1
RACE, BALL 4
Price unavailable
25
Required: 2
RACE, BALL 2
Price unavailable
26
Required: 2
PLANE BEARING, STEERING
Price unavailable
27
Required: 1
WASHER
Price unavailable
28
Required: 1
NUT, FITTING 1
Price unavailable
BRAKE HOSE HOLER
29
Yamaha Motors
BRAKE HOSE HOLER4PA-F5876-00-00
Required: 1
HOLDER, BRAKE HOSE 2
Cross Ship
Leaves in 2-5 days
$25.99
$22.09
You save $3.90
More details
Bolt Flasher
30
Yamaha Motors
Bolt Flasher3WW-H3327-00-00
Required: 1
BOLT, FLASHER 2
Cross Ship
Leaves in 2-5 days
$2.45
$2.08
You save $0.37
More details
Hexagon Bolt (ZNN)
31
Yamaha Motors
Hexagon Bolt (ZNN)90101-06X02-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
32
Required: 2
REFLECTOR, FRONT 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
