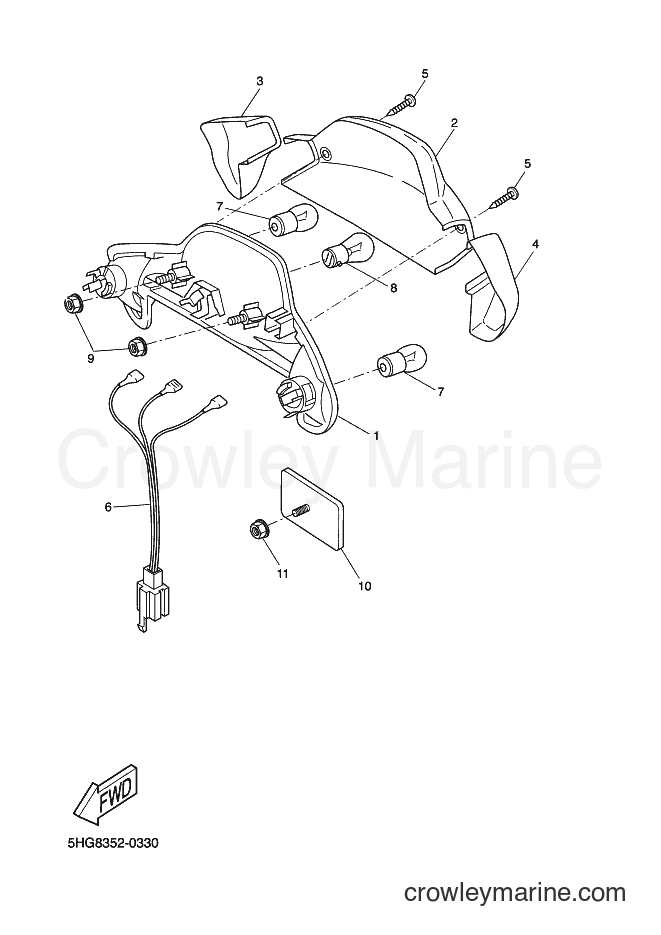

2002 Scooter CW50 - CW50 (5NT5) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50 (5NT5) [010] - TAILLIGHT
Change View:
1
Required: 1
BASE ASSY
Price unavailable
2
Required: 1
LENS, TAILLIGHT
Price unavailable
3
Required: 1
LENS, FLASHER 2
Price unavailable
4
Required: 1
LENS, FLASHER
Price unavailable
5
Required: 2
SCREW, LENS FITTING
Price unavailable
6
Required: 1
CORD ASSY
Price unavailable
BULB, TS 12V10W
7
Yamaha Motors
BULB, TS 12V10W3NS-83331-00-00
Required: 2
BULB (12V-10W)
Supersedes: NDH-H3311-00-01
Cross Ship
Leaves in 2-5 days
$12.99
$11.04
You save $1.95
More details
8
Required: 1
BULB (12V-21/5W)
Price unavailable
Nut
9
Yamaha Motors
Nut90179-06X00-00
Required: 2
NUT
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
10
Required: 1
REAR REFLECTOR ASSY
Price unavailable
Nut
11
Yamaha Motors
Nut90179-05X00-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$7.99
$6.79
You save $1.20
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
