2002 Scooter CW50 - CW50 (5MS2) [010] FRONT BRAKE CALIPER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

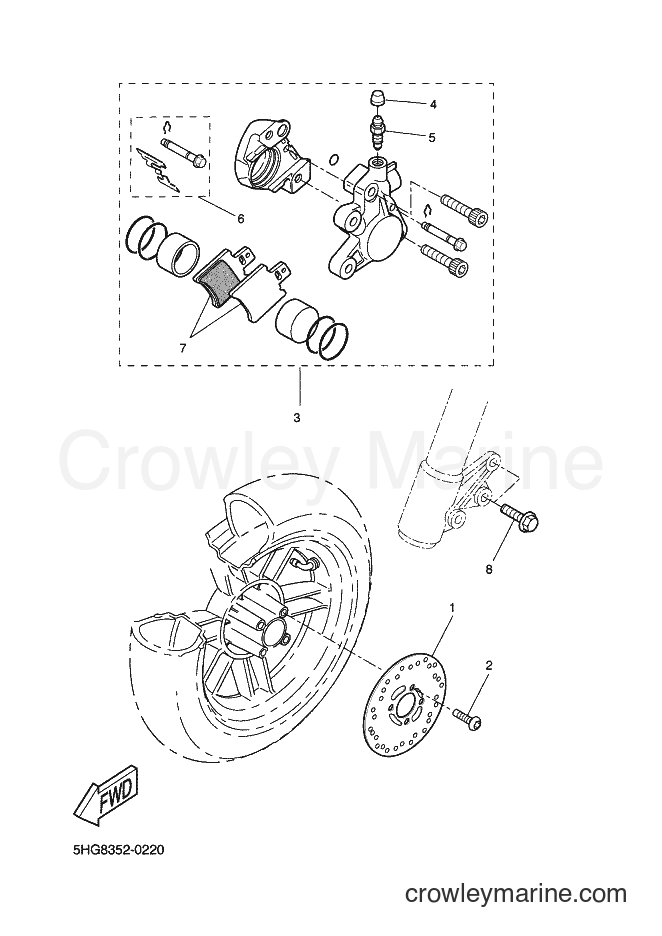

Yamaha Motors CW50 (5MS2) [010] - FRONT BRAKE CALIPER
Change View:
Brake Disc (Right)
1
Yamaha Motors
Brake Disc (Right)4VV-F5831-00-00
Required: 1
DISC, BRAKE
Cross Ship
Leaves in 2-5 days
$97.99
$83.29
You save $14.70
More details
BOLT
2
Yamaha Motors
BOLT90111-10X00-00
Required: 3
BOLT
Cross Ship
Leaves in 2-5 days
$12.99
$11.04
You save $1.95
More details
LEFT CALIPER ASSEMBLY
3
Yamaha Motors
LEFT CALIPER ASSEMBLY4VV-F580T-00-00
Required: 1
CALIPER ASSY (LEFT)
Cross Ship
Leaves in 2-5 days
$202.99
$172.54
You save $30.45
More details
4
Required: 1
. CAP
Price unavailable
5
Required: 1
. SCREW, BLEED
Price unavailable
6
Required: 1
. SUPPORT, PAD
Price unavailable
7
Required: 1
. PAD, CALIPER 2
Price unavailable
Flange Bolt
8
Yamaha Motors
Flange Bolt95817-08030-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
