2002 Scooter CW50 - CW50 (5HGB) [030] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

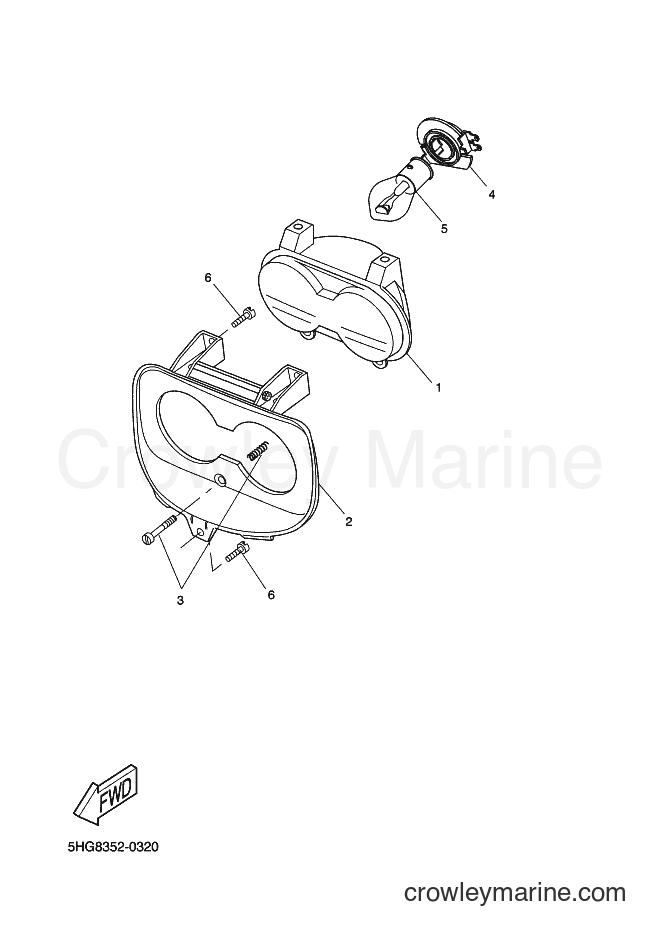

Yamaha Motors CW50 (5HGB) [030] - HEADLIGHT
Change View:
1
Required: 1
LENS ASSY
Price unavailable
2
Required: 1
COVER, SOCKET
Price unavailable
3
Required: 1
FASTENING SET
Price unavailable
4
Required: 1
SOCKET CORD ASSY 1
Price unavailable
5
Required: 1
BULB HEADLIGHT (12V-35/35W)
Price unavailable
Screw with Washer
6
Yamaha Motors
Screw with Washer90159-05089-00
Required: 3
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
