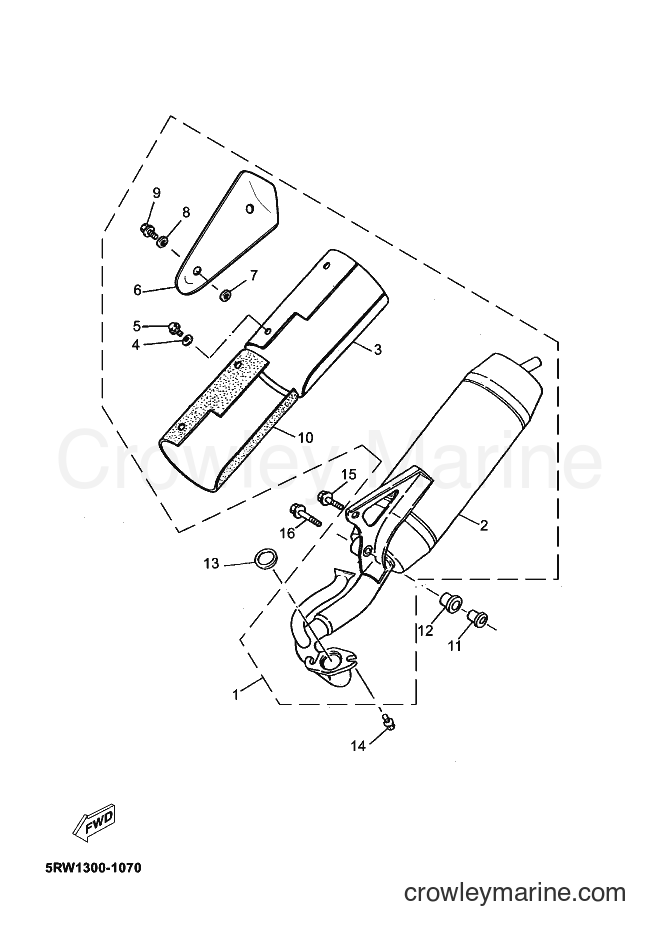

2002 Scooter CS50 - CS50 (5RW2) [040] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CS50 (5RW2) [040] - EXHAUST
Change View:
1
Required: 1
EXHAUST PIPE COMP.
Price unavailable
2
Required: 1
. EXHAUST PIPE ASSY 1
Price unavailable
3
Required: 1
. PROTECTOR, MUFFLER 1
Price unavailable
4
Required: 4
. WASHER 3
Price unavailable
5
Required: 4
. SCREW, PAN HEAD WITH WASHER
Price unavailable
6
Required: 1
. EMBLEM, PROTECTOR
Price unavailable
7
Required: 2
. REINFORCEMENT
Price unavailable
8
Required: 2
. WASHER 3
Price unavailable
9
Required: 2
. SCREW, PAN HEAD WITH WASHER
Price unavailable
10
Required: 1
. BRACKET, SEAT
Price unavailable
GROMMET, WATER TUBE (UPPER)
11
Yamaha Motors
GROMMET, WATER TUBE (UPPER)4MJ-E4445-00-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$2.45
$2.08
You save $0.37
More details
12
Required: 1
COLLAR
Price unavailable
13
Required: 1
GASKET, EXHAUST PIPE
Price unavailable
14
Required: 2
SCREW
Price unavailable
15
Required: 1
BOLT, FLANGE
Price unavailable
16
Required: 1
BOLT, FLANGE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
