2001 Scooter YW100 - YW100 (4VPB) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

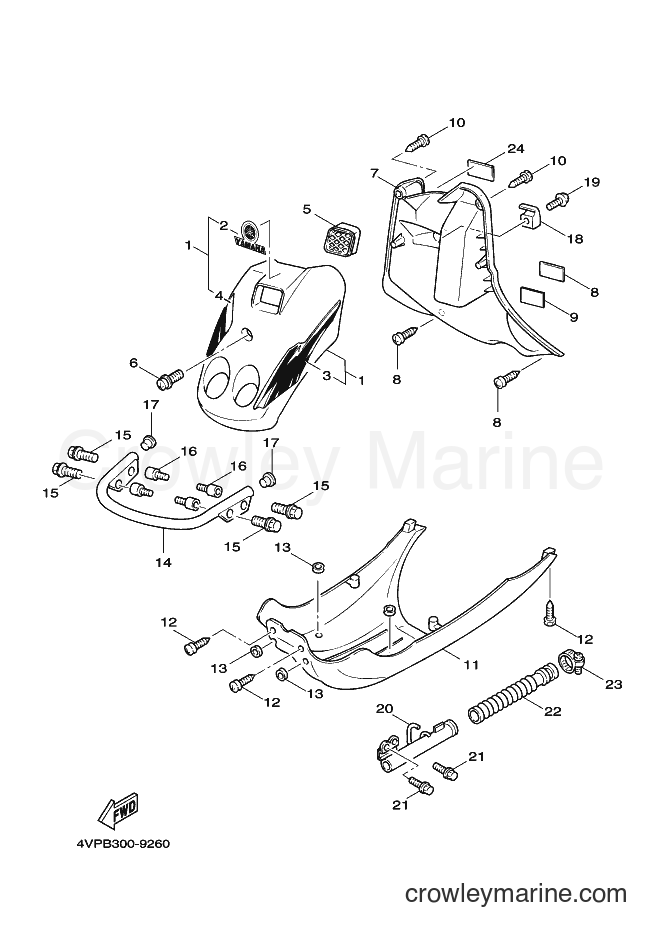

Yamaha Motors YW100 (4VPB) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
1
Required: 1
LEG SHIELD 1
Price unavailable
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Required: 1
EMBLEM 3
Price unavailable
2
Required: 1
EMBLEM 3
Price unavailable
Emblem / Rear APPLIQUE
2
Yamaha Motors
Emblem / Rear APPLIQUE4TH-F152A-20-00
Required: 1
EMBLEM 3
Cross Ship
Leaves in 2-5 days
$0.60
$0.51
You save $0.09
More details
3
Required: 1
EMBLEM
Price unavailable
3
Required: 1
EMBLEM
Price unavailable
3
Required: 1
EMBLEM
Price unavailable
Protector 1
5
Yamaha Motors
Protector 14VP-F834V-00-00
Required: 1
PROTECTOR 1
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details
Screw With Washer
6
Yamaha Motors
Screw With Washer90159-06812-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.25
$1.91
You save $0.34
More details
7
Required: 1
LEG SHIELD ASSY
Price unavailable
8
Required: 1
LABEL, WARNING
Price unavailable
8
Required: 1
LABEL, WARNING
Price unavailable
9
Required: 1
LABEL, WARNING
Price unavailable
LOWER COVER
11
Yamaha Motors
LOWER COVER4VP-F8385-11-00
Required: 1
COVER, LOWER
Cross Ship
Leaves in 2-5 days
$22.99
$19.54
You save $3.45
More details
14
Required: 1
GUARD COMP.
Price unavailable
Bolt Flange (6U1)
15
Yamaha Motors
Bolt Flange (6U1)95027-06020-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.20
$1.02
You save $0.18
More details
16
Required: 4
NUT 1
Price unavailable
Plug
17
Yamaha Motors
Plug90338-16148-00
Required: 2
PLUG
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
18
Required: 1
HOOK 1
Price unavailable
Screw With Washer
19
Yamaha Motors
Screw With Washer90159-06812-00
Required: 1
SCREW, WITH WASHER
Supersedes: 90159-06811-00
Cross Ship
Leaves in 2-5 days
$2.25
$1.91
You save $0.34
More details
20
Required: 1
BOX 1
Price unavailable
22
Required: 1
DUCT, COOLER
Price unavailable
Hose Clamp
23
Yamaha Motors
Hose Clamp90460-35260-00
Required: 2
CLAMP, HOSE
Cross Ship
Leaves in 2-5 days
$4.88
$4.15
You save $0.73
More details
24
Required: 1
PLATE, SIDE 3
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
