All diagrams for this model

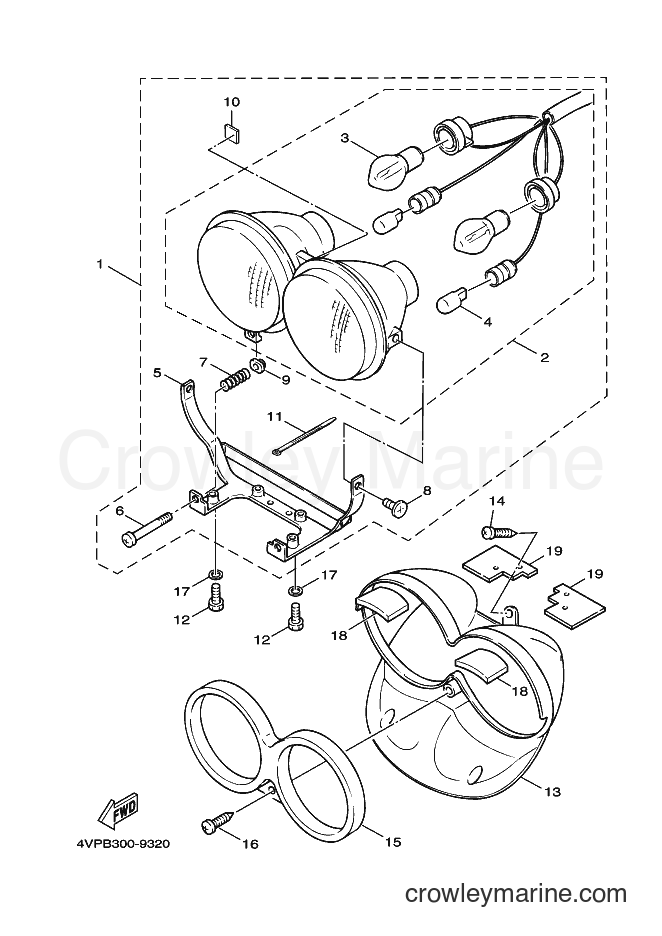

2001 Scooter YW100 - YW100 (4VPB) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YW100 (4VPB) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
2
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
3
Required: 2
BULB, HEADLIGHT
Price unavailable
4
Required: 2
BULB
Price unavailable
5
Required: 1
STAY, HEADLIGHT 1
Price unavailable
6
Required: 1
SCREW, RIM ADJUSTING
Price unavailable
7
Required: 1
SPRING, SCREW
Price unavailable
8
Required: 2
BOLT, SPECIAL
Price unavailable
9
Required: 1
NUT
Price unavailable
10
Required: 1
DAMPER, HEADLIGHT 2
Price unavailable
Band
11
Yamaha Motors
Band1UA-82591-00-00
Required: 1
CLAMP
Supersedes: 90465-13152-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Flange Bolt
12
Yamaha Motors
Flange Bolt95807-06016-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details
13
Required: 1
COVER, HEADLIGHT
Price unavailable
Truss Screw
14
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
15
Required: 1
GUARD, HEADLIGHT
Price unavailable
Tapping Screw
16
Yamaha Motors
Tapping Screw90163-05800-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$0.35
$0.30
You save $0.05
More details
Plate Washer
17
Yamaha Motors
Plate Washer90201-07081-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Damper
19
Yamaha Motors
Damper4VP-H4368-00-00
Required: 2
DAMPER 3
Cross Ship
Leaves in 2-5 days
$1.35
$1.15
You save $0.20
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
