2001 Scooter YW100 - YW100 (4VPJ) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

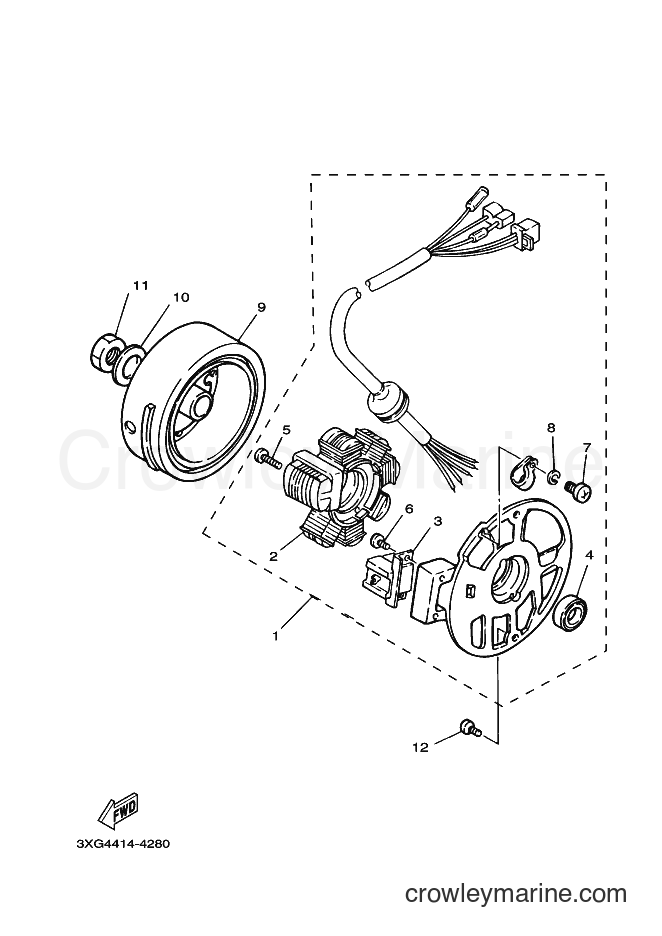

Yamaha Motors YW100 (4VPJ) [010] - GENERATOR
Change View:
1
Required: 1
BASE ASSY
Price unavailable
Stator Comp
2
Yamaha Motors
Stator Comp3GF-H1403-V0-00
Required: 1
STATORCOMP.
Cross Ship
Leaves in 2-5 days
$52.99
$45.04
You save $7.95
More details
Pulser Coil
3
Yamaha Motors
Pulser Coil3GF-H5580-V0-00
Required: 1
COIL, PULSER
Cross Ship
Leaves in 2-5 days
$22.99
$19.54
You save $3.45
More details
OIL SEAL,SO-TYPE
4
Yamaha Motors
OIL SEAL,SO-TYPE93104-19097-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Pan Head Screw
5
Yamaha Motors
Pan Head Screw98511-05020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98501-05020-00
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details
6
Required: 2
SCREW, PAN HEAD
Price unavailable
9
Required: 1
ROTOR ASSY
Price unavailable
Plate Washer
10
Yamaha Motors
Plate Washer92907-12600-00
Required: 1
WASHER
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
NUT (6TA)
11
Yamaha Motors
NUT (6TA)95337-12600-00
Required: 1
NUT
Supersedes: 95307-12600-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Pan Head Screw
12
Yamaha Motors
Pan Head Screw98507-06016-00
Required: 2
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.48
$2.96
You save $0.52
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
