2001 Scooter YQ100 - YQ100 (5ME4) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

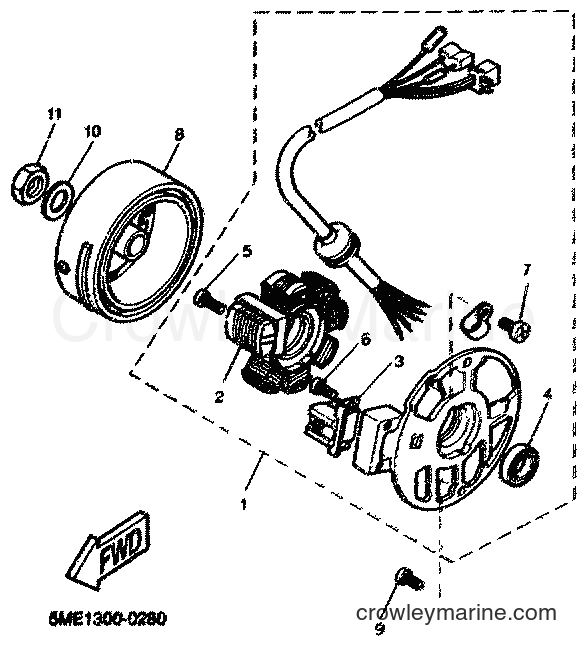

Yamaha Motors YQ100 (5ME4) [010] - GENERATOR
Change View:
1
Required: 1
BASE ASSY
Price unavailable
2
Required: 1
. STATORCOMP.
Price unavailable
3
Required: 1
. COIL, PULSER
Price unavailable
OIL SEAL,SO-TYPE
4
Yamaha Motors
OIL SEAL,SO-TYPE93104-19097-00
Required: 1
. OIL SEAL
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Pan Head Screw
5
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98507-05020-00
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
7
Required: 1
. SCREW, PAN HEAD
Price unavailable
8
Required: 1
ROTOR ASSY
Price unavailable
9
Required: 2
SCREW, PAN HEAD
Price unavailable
Plate Washer
10
Yamaha Motors
Plate Washer92907-12600-00
Required: 1
WASHER
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
NUT (6TA)
11
Yamaha Motors
NUT (6TA)95337-12600-00
Required: 1
. . NUT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
