All diagrams for this model

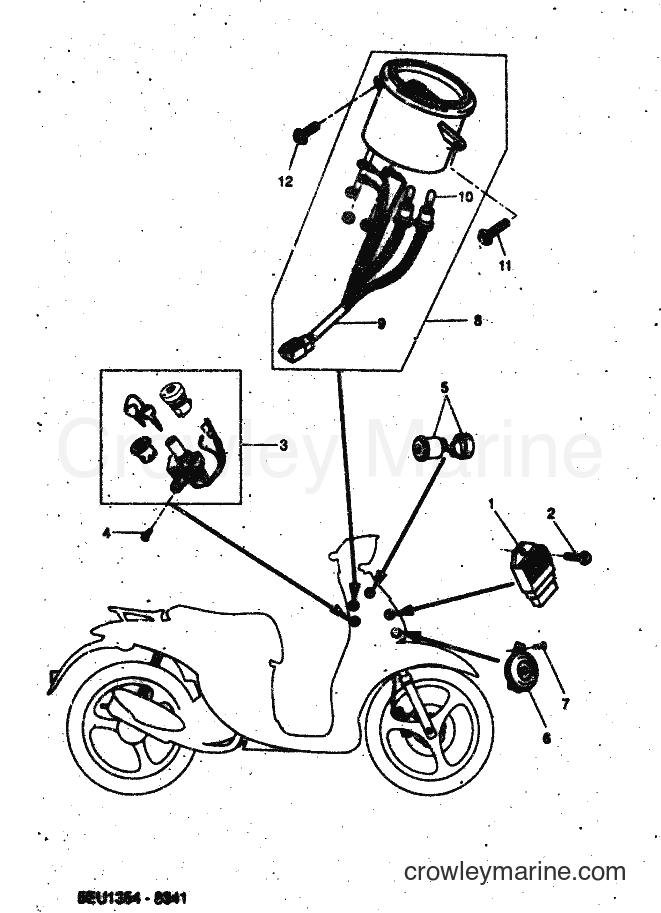

2001 Scooter YH50 - YH50 (5PF2) [030] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YH50 (5PF2) [030] - ELECTRICAL 1
Change View:
1
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
2
Required: 1
SCREW, BINDING
Price unavailable
3
Required: 1
KEY SET
Price unavailable
BOLT
4
Yamaha Motors
BOLT90109-06851-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
5
Required: 1
FLASHER RELAY ASSY
Price unavailable
6
Required: 1
HORN
Price unavailable
7
Required: 1
SCREW, BINDING
Price unavailable
8
Required: 1
FUEL METER ASSY
Price unavailable
9
Required: 1
.CORD 1
Price unavailable
10
Required: 2
.BULB 12V-3W
Price unavailable
Tapping Screw
11
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 1
SCREW M5-16
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details
12
Required: 1
SCREW M5-12
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
