All diagrams for this model

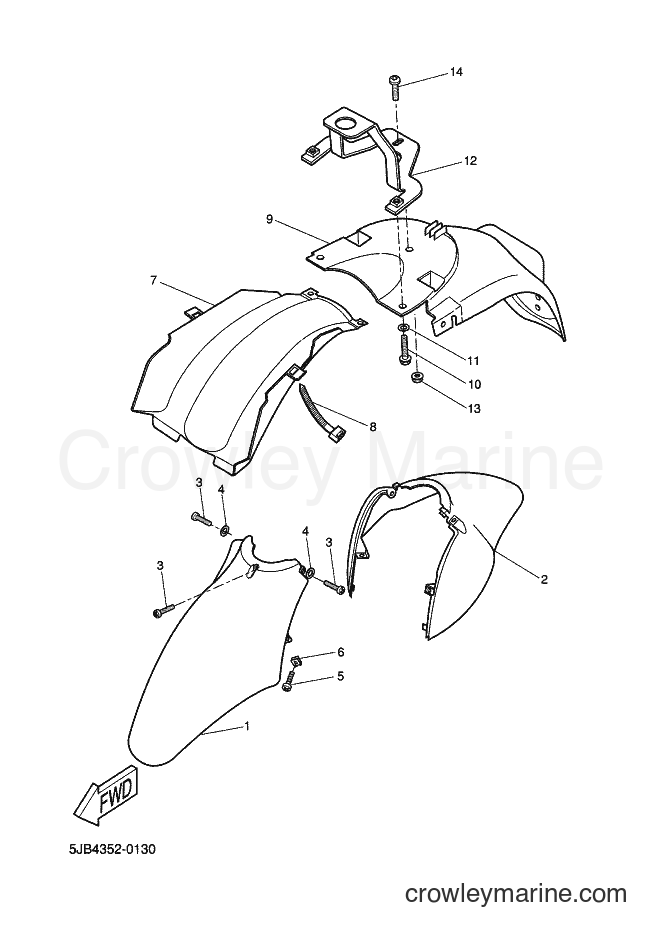

2001 Scooter YH50 - YH50 (5FV6) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YH50 (5FV6) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
1
Required: 1
FENDER, FRONT
Price unavailable
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 1
FENDER, FRONT 2
Price unavailable
2
Required: 1
FENDER, FRONT 2
Price unavailable
Binding Screw
3
Yamaha Motors
Binding Screw90154-06X01-00
Required: 3
SCREW, BINDING
Cross Ship
Leaves in 2-5 days
$3.70
$3.15
You save $0.56
More details
4
Required: 2
WASHER, WAVE
Price unavailable
5
Required: 2
SCREW, TAPPING
Price unavailable
Spring Nut
6
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
7
Required: 1
GUARD, MUD
Price unavailable
Switch Cord Band
8
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 2
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
9
Required: 1
GUARD, FLAP
Price unavailable
9
Required: 1
GUARD, FLAP
Price unavailable
10
Required: 2
BOLT
Price unavailable
Washer
11
Yamaha Motors
Washer3HL-F2245-00-00
Required: 2
WASHER 3
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
12
Required: 1
REAR STAY COMP.
Price unavailable
Nut
13
Yamaha Motors
Nut90179-05X03-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$1.20
$1.02
You save $0.18
More details
14
Required: 1
BOLT,HEX. SOCKET BUTTON
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
