2001 Scooter XQ150 - XQ150 (5LG2) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

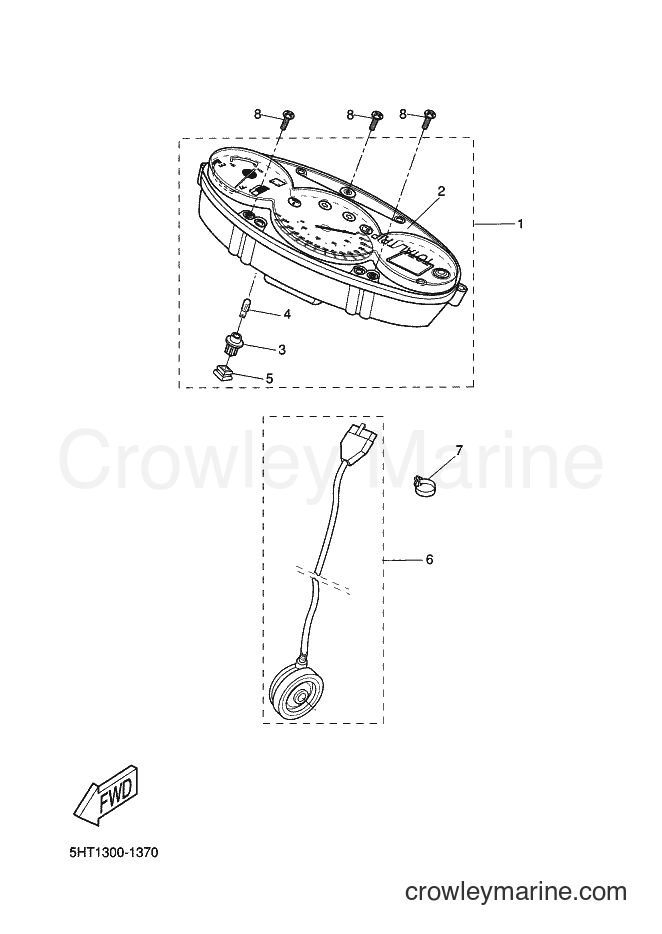

Yamaha Motors XQ150 (5LG2) [010] - METER
Change View:
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
2
Required: 1
. GLASS PLATE
Price unavailable
3
Required: 6
. SOCKET
Price unavailable
4
Required: 6
. BULB (12V-1.2W)
Price unavailable
5
Required: 6
. PLUG, BLIND
Price unavailable
6
Required: 1
SENSOR, UNIT
Price unavailable
7
Required: 1
CLAMP
Price unavailable
Tapping Screw
8
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 3
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
