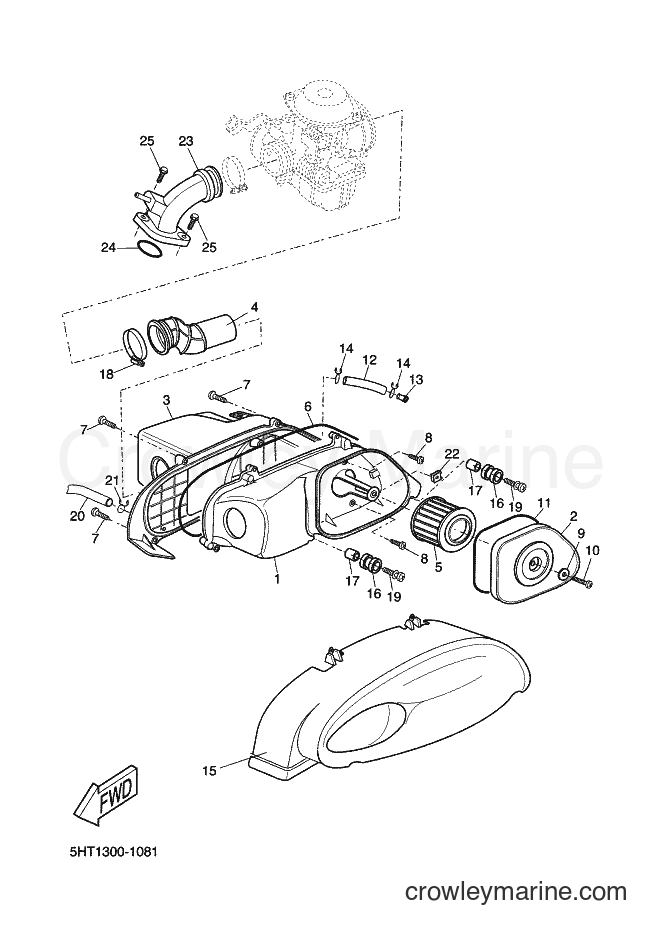

2001 Scooter XQ125 - XQ125 (5HT2) [030] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XQ125 (5HT2) [030] - INTAKE
Change View:
1
Required: 1
CASE, AIR CLEANER 1
Price unavailable
2
Required: 1
CAP, CLEANER CASE 1
Price unavailable
3
Required: 1
CAP, CLEANER CASE 2
Price unavailable
4
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
5
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
6
Required: 1
SEAL
Price unavailable
7
Required: 5
SCREW
Price unavailable
Tapping Screw
8
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 6
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details
9
Required: 1
WASHER, PLATE
Price unavailable
10
Required: 1
SCREW, BINDING
Price unavailable
11
Required: 1
SEAL
Price unavailable
12
Required: 1
HOSE
Price unavailable
13
Required: 1
COVER, DRAIN VALVE
Price unavailable
14
Required: 2
CLIP
Price unavailable
15
Required: 1
COVER, CLEANER CASE 1
Price unavailable
Grommet
16
Yamaha Motors
Grommet90480-13598-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
COLLAR
17
Yamaha Motors
COLLAR90387-06144-00
Required: 2
COLLAR
Supersedes: 90387-064W3-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
18
Required: 1
BAND
Price unavailable
19
Required: 2
SCREW, WITH WASHER
Price unavailable
20
Required: 1
PIPE
Price unavailable
21
Required: 2
CLIP
Price unavailable
Spring Nut
22
Yamaha Motors
Spring Nut90183-05X03-00
Required: 1
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
23
Required: 1
MANIFOLD
Price unavailable
O-Ring
24
Yamaha Motors
O-Ring93210-30611-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
25
Required: 2
SCREW
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
