2001 Scooter XQ125 - XQ125 (5HT2) [030] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

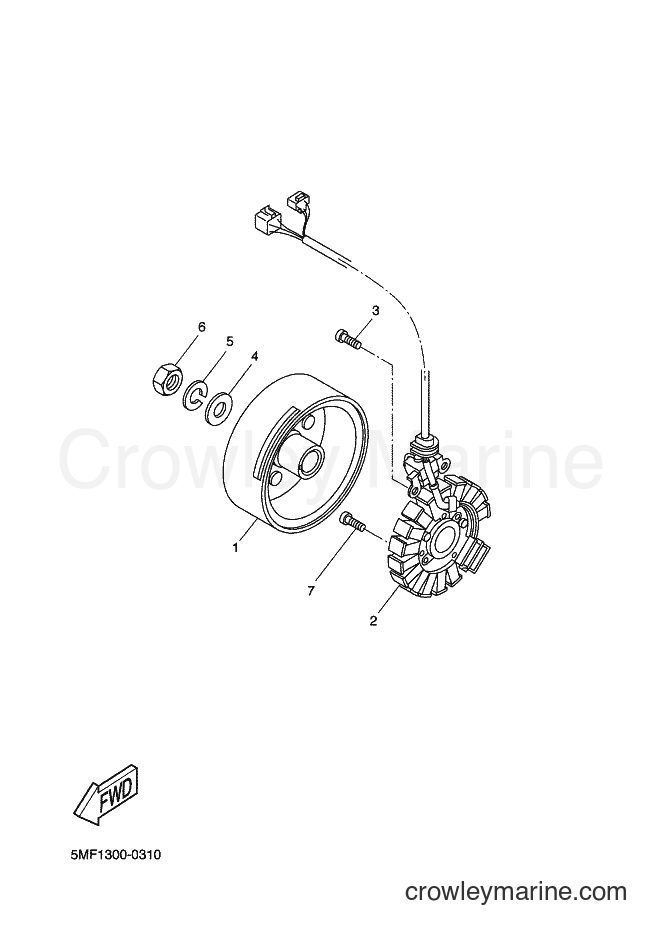

Yamaha Motors XQ125 (5HT2) [030] - GENERATOR
Change View:
1
Required: 1
ROTOR ASSY
Price unavailable
2
Required: 1
STATOR ASSY
Price unavailable
3
Required: 2
SCREW
Price unavailable
Plate Washer
4
Yamaha Motors
Plate Washer92907-12600-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
WASHER
5
Yamaha Motors
WASHER92907-12100-00
Required: 1
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Hexagon Nut
6
Yamaha Motors
Hexagon Nut90170-12181-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
7
Required: 3
SCREW
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
