2001 Scooter XQ125 - XQ125 (5HT2) [010] STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

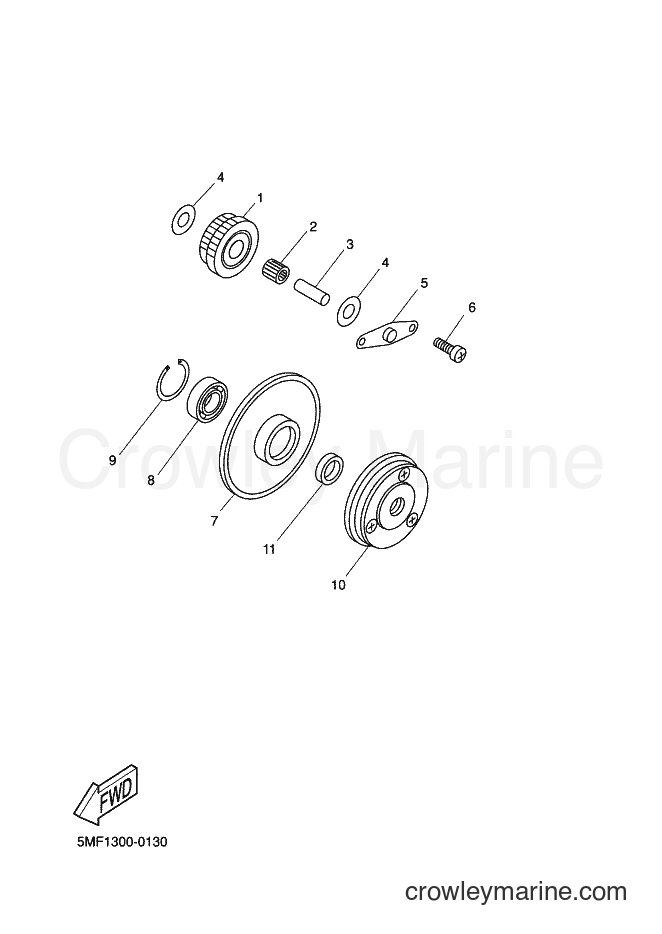

Yamaha Motors XQ125 (5HT2) [010] - STARTER
Change View:
1
Required: 1
IDLE GEAR ASSY
Price unavailable
2
Required: 1
BEARING
Price unavailable
3
Required: 1
SHAFT 1
Price unavailable
Plain Washer
4
Yamaha Motors
Plain Washer90201-108A3-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.65
$1.40
You save $0.25
More details
5
Required: 1
PLATE, IDLE GEAR
Price unavailable
6
Required: 2
SCREW
Price unavailable
7
Required: 1
WHEEL, STARTER
Price unavailable
8
Required: 1
BEARING
Price unavailable
Circle Clip
9
Yamaha Motors
Circle Clip93450-35163-00
Required: 1
CIRCLIP
Supersedes: 93450-35015-00
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
10
Required: 1
STARTER CLUTCH ASSY
Price unavailable
11
Required: 1
COLLAR
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
