2001 Scooter XQ125 - XQ125 (5HT2) [050] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

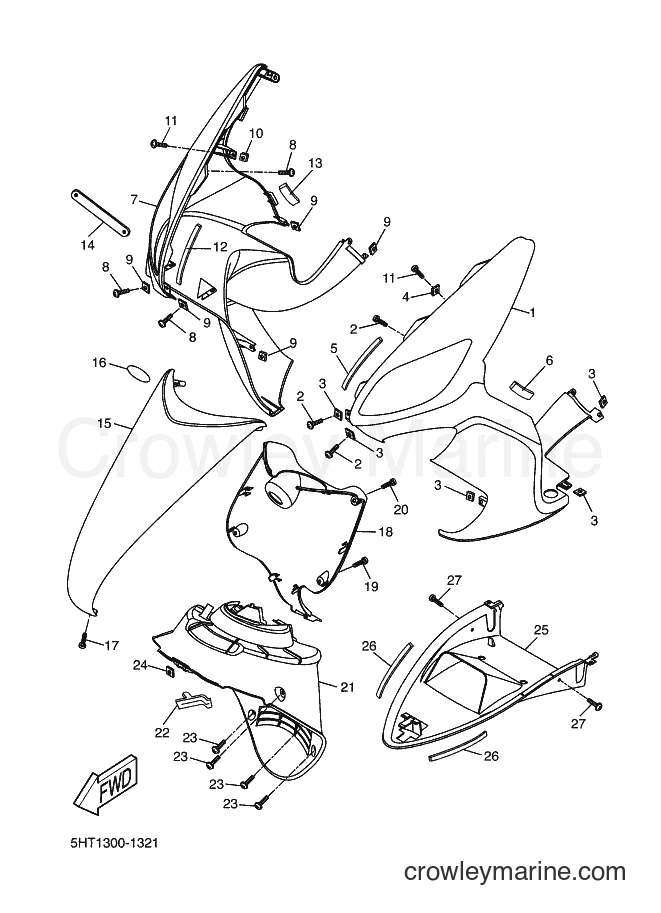

Yamaha Motors XQ125 (5HT2) [050] - LEG SHIELD
Change View:
1
Required: 1
BODY, FRONT UPPER 1
Price unavailable
2
Required: 5
SCREW, TAPPING
Price unavailable
Spring Nut
3
Yamaha Motors
Spring Nut90183-05X03-00
Required: 6
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Spring Nut
4
Yamaha Motors
Spring Nut90183-06X00-00
Required: 1
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
5
Required: 1
DAMPER
Price unavailable
6
Required: 1
DAMPER
Price unavailable
7
Required: 1
BODY, FRONT UPPER 2
Price unavailable
8
Required: 5
SCREW, TAPPING
Price unavailable
Spring Nut
9
Yamaha Motors
Spring Nut90183-05X03-00
Required: 6
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Spring Nut
10
Yamaha Motors
Spring Nut90183-06X00-00
Required: 1
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Binding Screw
11
Yamaha Motors
Binding Screw90154-06X01-00
Required: 2
SCREW, BINDING
Supersedes: 90154-06X04-00
Cross Ship
Leaves in 2-5 days
$3.70
$3.15
You save $0.56
More details
12
Required: 1
DAMPER
Price unavailable
13
Required: 1
DAMPER
Price unavailable
14
Required: 1
BRACKET 1
Price unavailable
15
Required: 1
PANEL 1
Price unavailable
16
Required: 1
EMBLEM
Price unavailable
17
Required: 1
SCREW, TAPPING
Price unavailable
18
Required: 1
BODY, COWLING
Price unavailable
19
Required: 2
SCREW, TAPPING
Price unavailable
Tapping Screw
20
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details
21
Required: 1
GRILL, AIR INTAKE 1
Price unavailable
22
Required: 1
COVER
Price unavailable
23
Required: 6
SCREW, TAPPING
Price unavailable
Spring Nut
24
Yamaha Motors
Spring Nut90183-05X03-00
Required: 3
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
25
Required: 1
COVER, LOWER
Price unavailable
26
Required: 2
DAMPER
Price unavailable
27
Required: 2
SCREW, TAPPING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
