2001 Scooter XQ125 - XQ125 (5HT2) [030] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

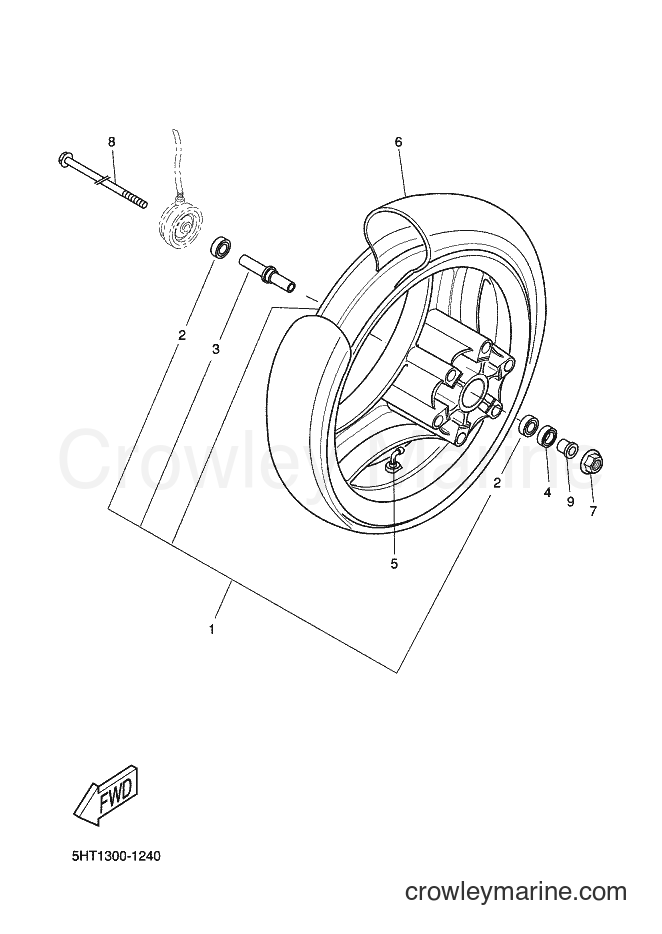

Yamaha Motors XQ125 (5HT2) [030] - FRONT WHEEL
Change View:
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
BEARING
2
Yamaha Motors
BEARING93306-201X2-00
Required: 2
. BEARING
Supersedes: 93306-201Y2-00
Cross Ship
Leaves in 2-5 days
$4.85
$4.12
You save $0.73
More details
3
Required: 1
. SPACER, BEARING
Price unavailable
4
Required: 1
OIL SEAL
Price unavailable
5
Required: 1
AIR VALVE ASSY
Price unavailable
6
Required: 1
TIRE (130/60-13 M/C 53L)
Price unavailable
FLANGE NUT
7
Yamaha Motors
FLANGE NUT95607-12200-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
8
Required: 1
AXLE, WHEEL
Price unavailable
9
Required: 1
SPACER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
