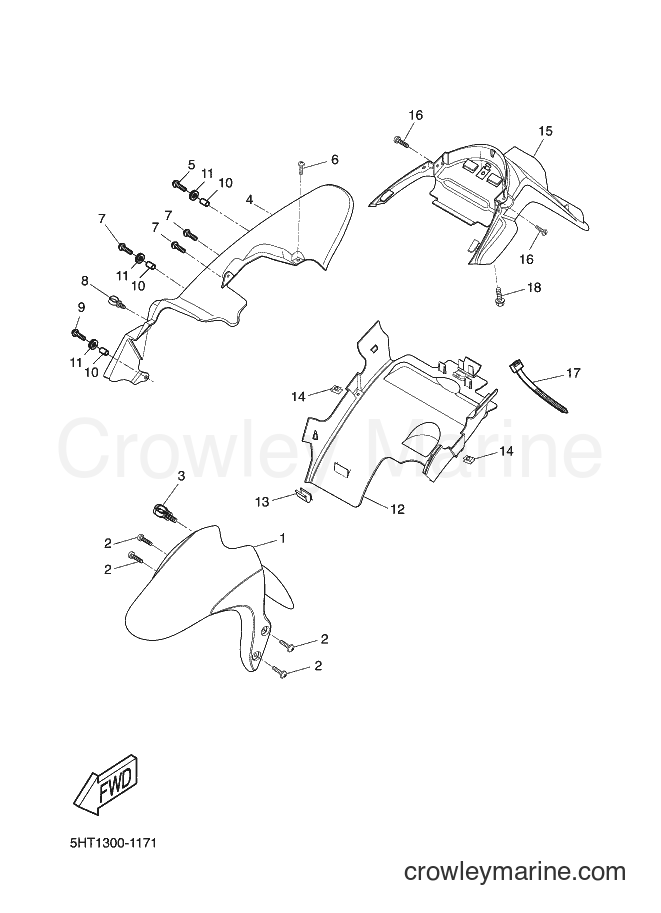

2001 Scooter XQ125 - XQ125 (5HT2) [040] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XQ125 (5HT2) [040] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 4
SCREW, WITH WASHER
Price unavailable
3
Required: 1
HOLDER, CABLE
Price unavailable
4
Required: 1
FENDER, REAR
Price unavailable
Tapping Screw
5
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details
6
Required: 1
SCREW, TAPPING
Price unavailable
Tapping Screw
7
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 3
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details
8
Required: 1
CLAMP
Price unavailable
9
Required: 1
SCREW, BINDING
Price unavailable
COLLAR
10
Yamaha Motors
COLLAR90387-060G7-00
Required: 3
COLLAR
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 3
GROMMET
Price unavailable
12
Required: 1
GUARD, MUD
Price unavailable
13
Required: 1
CLAMP
Price unavailable
Spring Nut
14
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
15
Required: 1
GUARD, FLAP
Price unavailable
Tapping Screw
16
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details
Switch Cord Band
17
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 5
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Flange Bolt
18
Yamaha Motors
Flange Bolt95817-06016-00
Required: 1
BOLT, FLANGE
Supersedes: 90105-06X00-00
Cross Ship
Leaves in 2-5 days
$1.95
$1.56
You save $0.39
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
