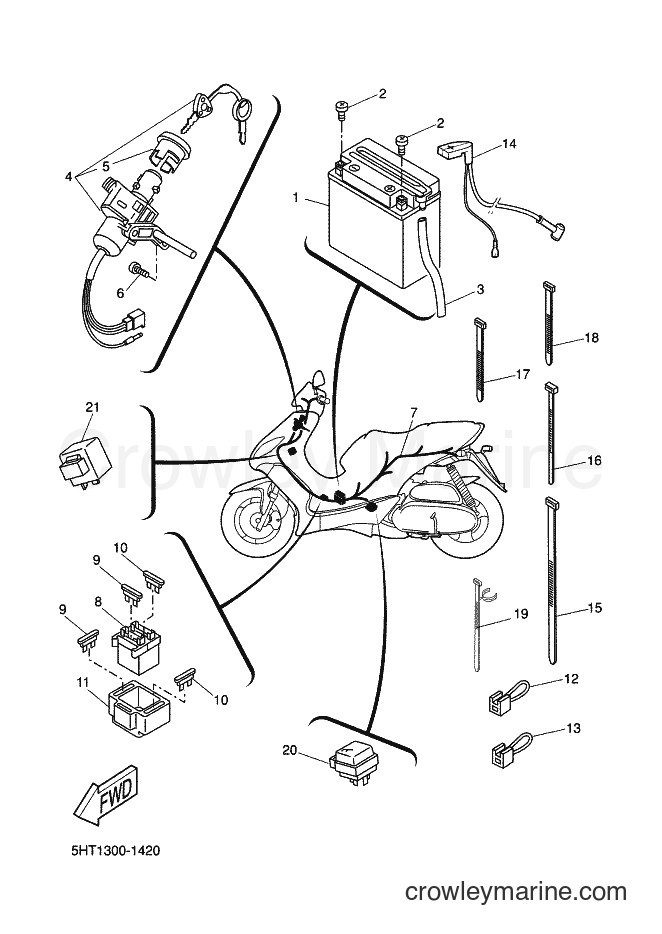

2001 Scooter XQ125 - XQ125 (5HT2) [030] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XQ125 (5HT2) [030] - ELECTRICAL 2
Change View:
1
Required: 1
BATTERY ASSY
Price unavailable
1
Required: 1
BATTERY ASSY
Price unavailable
2
Required: 2
SCREW, TAPPING
Price unavailable
3
Required: 1
PIPE, BREATHER
Price unavailable
4
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
5
Required: 1
. CAP, SWITCH
Price unavailable
BOLT
6
Yamaha Motors
BOLT90109-06851-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
7
Required: 1
WIRE HARNESS ASSY
Price unavailable
8
Required: 2
. HOLDER, FUSE
Price unavailable
9
Required: 2
. FUSE
Price unavailable
10
Required: 2
. FUSE (7.5A)
Price unavailable
11
Required: 1
. BAND
Price unavailable
12
Required: 2
. WIRE, LEAD 1
Price unavailable
13
Required: 1
. WIRE, LEAD 1
Price unavailable
14
Required: 1
. WIRE, PLUS LEAD
Price unavailable
Switch Cord Band
15
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 6
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Switch Cord Band
16
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 1
BAND, SWITCH CORD
Supersedes: 4VU-H3936-01-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Switch Cord Band
17
Yamaha Motors
Switch Cord Band4VV-H3936-01-00
Required: 1
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
18
Required: 1
CLAMP
Price unavailable
19
Required: 1
CLAMP
Price unavailable
20
Required: 1
RELAY ASSY
Price unavailable
21
Required: 1
FLASHER RELAY ASSY
Price unavailable
