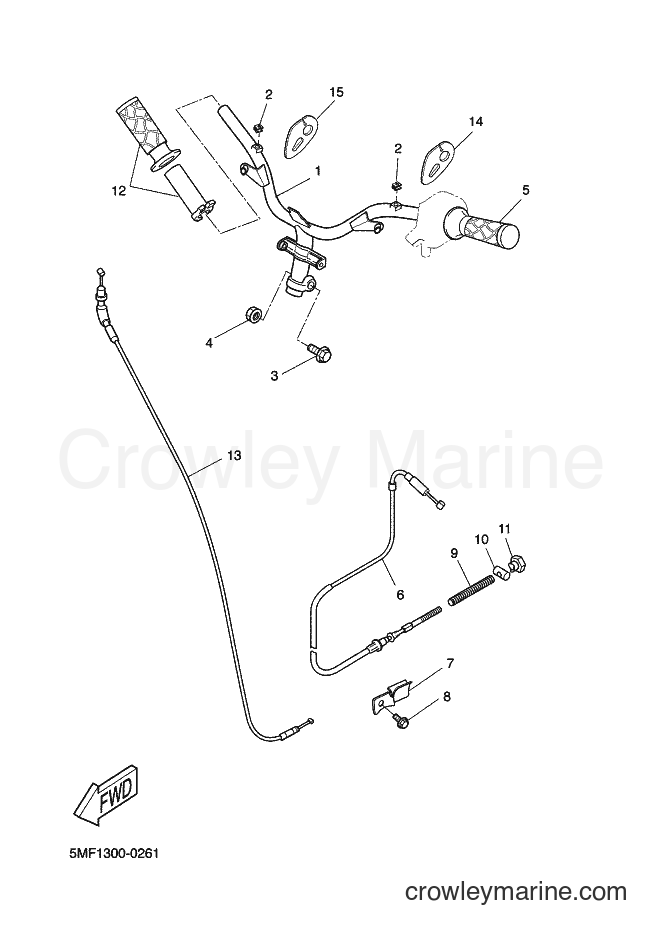

2001 Scooter XN150 - XN150 (5PR2) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XN150 (5PR2) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE COMP.
Price unavailable
Spring Nut
2
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Washer Based Bolt
3
Yamaha Motors
Washer Based Bolt90105-10036-00
Required: 1
BOLT, WASHER BASED
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Self-Locking Nut
4
Yamaha Motors
Self-Locking Nut90185-10154-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
5
Required: 1
GRIP
Price unavailable
6
Required: 1
CABLE, BRAKE
Price unavailable
7
Required: 1
HOLDER, WIRE
Price unavailable
8
Required: 1
SCREW, BINDING
Price unavailable
Compression Spring
9
Yamaha Motors
Compression Spring90501-122E1-00
Required: 1
SPRING, COMPRESSION
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
Special Shape Nut
11
Yamaha Motors
Special Shape Nut90179-06411-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
12
Required: 1
GRIP ASSY
Price unavailable
13
Required: 1
CABLE, THROTTLE 1
Price unavailable
14
Required: 1
PROTECTOR 1
Price unavailable
15
Required: 1
PROTECTOR 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
