All diagrams for this model

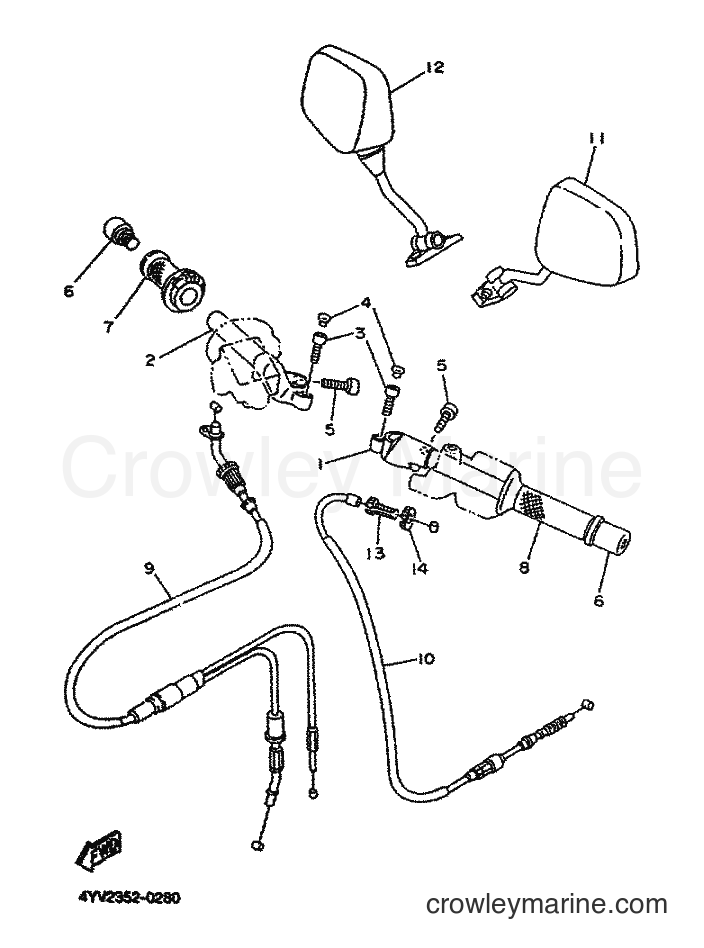

2001 Scooter TZR50 - TZR50 (5DU5) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TZR50 (5DU5) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLEBAR (LEFT)
Price unavailable
2
Required: 1
HANDLEBAR (RIGHT)
Price unavailable
3
Required: 2
BOLT
Price unavailable
4
Required: 2
CAP, BOLT
Price unavailable
5
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
6
Required: 2
END, GRIP
Price unavailable
7
Required: 1
GRIP ASSY
Price unavailable
8
Required: 1
GRIP
Price unavailable
9
Required: 1
CABLE ASSY, THROTTLE & PUMP
Price unavailable
10
Required: 1
CABLE, CLUTCH
Price unavailable
11
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
12
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
BOLT
13
Yamaha Motors
BOLT90123-08002-00
Required: 1
BOLT
Supersedes: 90123-08046-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Nut
14
Yamaha Motors
Nut90179-08030-00
Required: 1
NUT
Supersedes: 90179-08148-00
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
