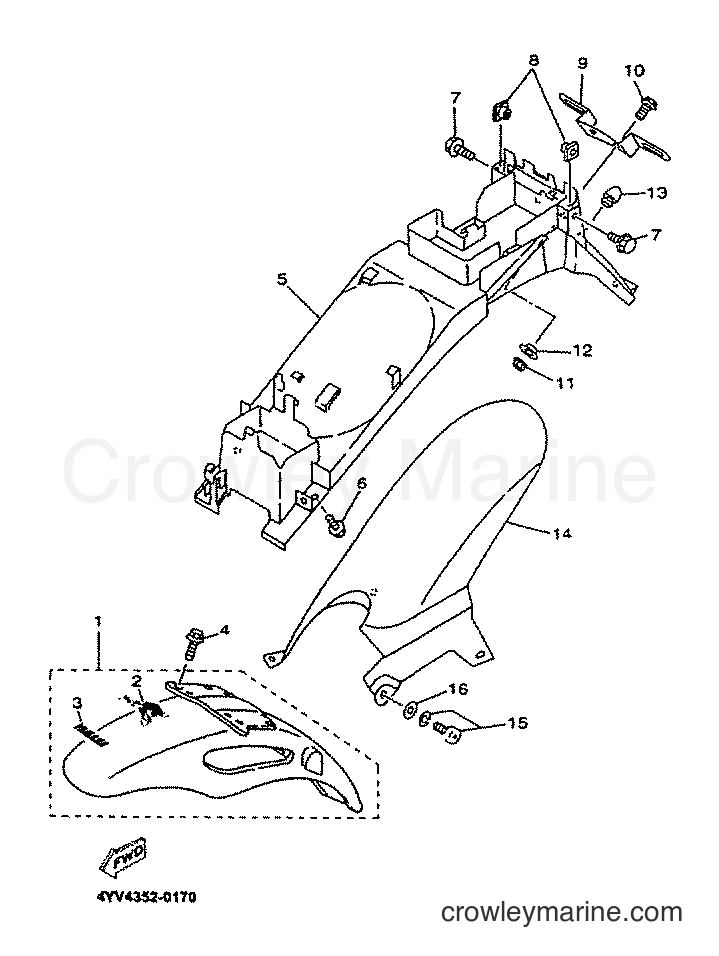

2001 Scooter TZR50 - TZR50 (5DU5) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TZR50 (5DU5) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 1
. EMBLEM
Price unavailable
YAMAHA EMBLEM
3
Yamaha Motors
YAMAHA EMBLEM99241-00080-00
Required: 1
. EMBLEM, YAMAHA
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
4
Required: 4
BOLT, FLANGE
Price unavailable
5
Required: 1
FENDER, REAR
Price unavailable
Bolt with Washer
6
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
7
Required: 2
BOLT, FLANGE
Price unavailable
Plate
8
Yamaha Motors
Plate31A-14477-10-00
Required: 3
PLATE
Supersedes: 31A-14477-00-00
Cross Ship
Leaves in 2-5 days
$1.55
$1.32
You save $0.23
More details
9
Required: 1
LABEL, TIRE
Price unavailable
95817-06016-00
10
Yamaha Motors
95817-06016-009580M-06016-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details
Flange Nut
11
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Supersedes: 9570N-06500-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
COLLAR
12
Yamaha Motors
COLLAR90387-06500-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
13
Required: 1
DAMPER 2
Price unavailable
14
Required: 1
REAR FENDER COMP.
Price unavailable
15
Required: 1
SCREW
Price unavailable
16
Required: 1
WASHER, PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
