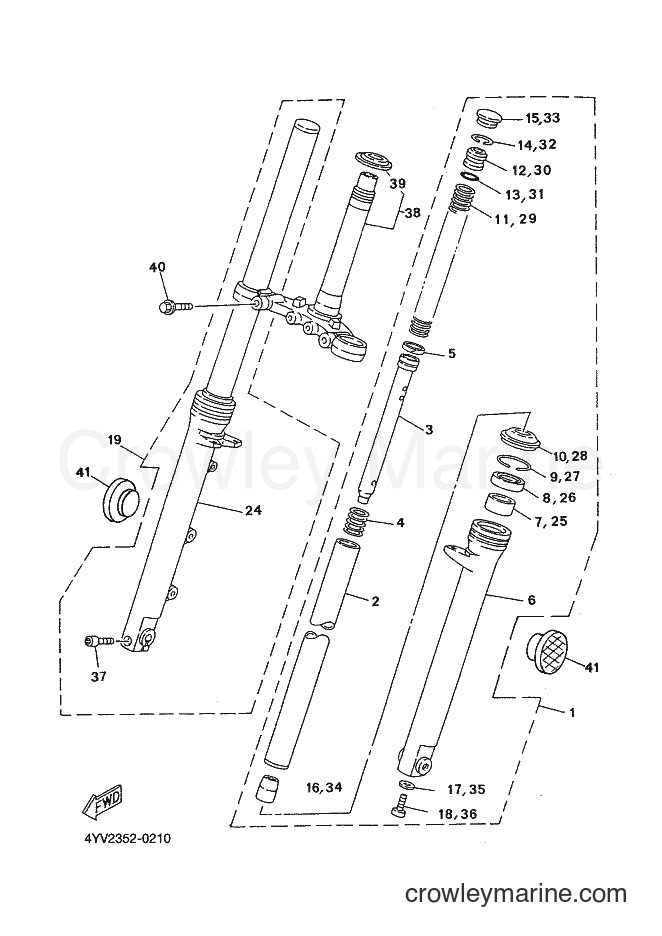

2001 Scooter TZR50 - TZR50 (4YV4) [010] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TZR50 (4YV4) [010] - FRONT FORK
Change View:
1
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
2
Required: 1
INNER TUBE COMP.1
Price unavailable
3
Required: 1
PISTON, FRONT FORK
Price unavailable
4
Required: 1
SPRING, REBOUND
Price unavailable
5
Required: 1
RING, PISTON
Price unavailable
6
Required: 1
TUBE, OUTER (L.H)
Price unavailable
METAL,SLIDE 1
7
Yamaha Motors
METAL,SLIDE 11GU-23125-00-00
Required: 1
METAL, SLIDE 1
Cross Ship
Leaves in 2-5 days
$8.99
$7.64
You save $1.35
More details
OK Seal SWO-Type
8
Yamaha Motors
OK Seal SWO-Type93110-33023-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$17.49
$14.87
You save $2.62
More details
9
Required: 1
RING, SNAP
Price unavailable
10
Required: 1
SEAL, DUST
Price unavailable
11
Required: 1
SPRING, FRONT FORK
Price unavailable
12
Required: 1
BOLT, CAP
Price unavailable
13
Required: 1
O-RING
Price unavailable
Inner Circle Clip
14
Yamaha Motors
Inner Circle Clip93450-31114-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$0.60
$0.51
You save $0.09
More details
15
Required: 1
CAP
Price unavailable
16
Required: 1
SPINDLE, TAPER
Price unavailable
90430-08143-00
17
Yamaha Motors
90430-08143-0090430-08155-00
Required: 1
WASHER, PLATE
Supersedes: 90201-081E6-00
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
18
Required: 1
BOLT, HEXAGON SOCKET HEAD
Price unavailable
19
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
24
Required: 1
TUBE, OUTER 2
Price unavailable
METAL,SLIDE 1
25
Yamaha Motors
METAL,SLIDE 11GU-23125-00-00
Required: 1
METAL, SLIDE 1
Cross Ship
Leaves in 2-5 days
$8.99
$7.64
You save $1.35
More details
OK Seal SWO-Type
26
Yamaha Motors
OK Seal SWO-Type93110-33023-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$17.49
$14.87
You save $2.62
More details
27
Required: 1
RING, SNAP
Price unavailable
28
Required: 1
SEAL, DUST
Price unavailable
29
Required: 1
SPRING, FRONT FORK
Price unavailable
30
Required: 1
BOLT, CAP
Price unavailable
31
Required: 1
O-RING
Price unavailable
Inner Circle Clip
32
Yamaha Motors
Inner Circle Clip93450-31114-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$0.60
$0.51
You save $0.09
More details
33
Required: 1
CAP
Price unavailable
34
Required: 1
SPINDLE, TAPER
Price unavailable
90430-08143-00
35
Yamaha Motors
90430-08143-0090430-08155-00
Required: 1
WASHER, PLATE
Supersedes: 90201-081E6-00
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
36
Required: 1
BOLT, HEXAGON SOCKET HEAD
Price unavailable
37
Required: 1
BOLT
Price unavailable
38
Required: 1
UNDER BRACKET COMP.
Price unavailable
BALL RACE
39
Yamaha Motors
BALL RACEB6E-23411-00-00
Required: 1
RACE, BALL 1
Supersedes: 156-23411-00-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
40
Required: 2
BOLT
Price unavailable
41
Required: 2
REFLECTOR, FRONT 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
