All diagrams for this model

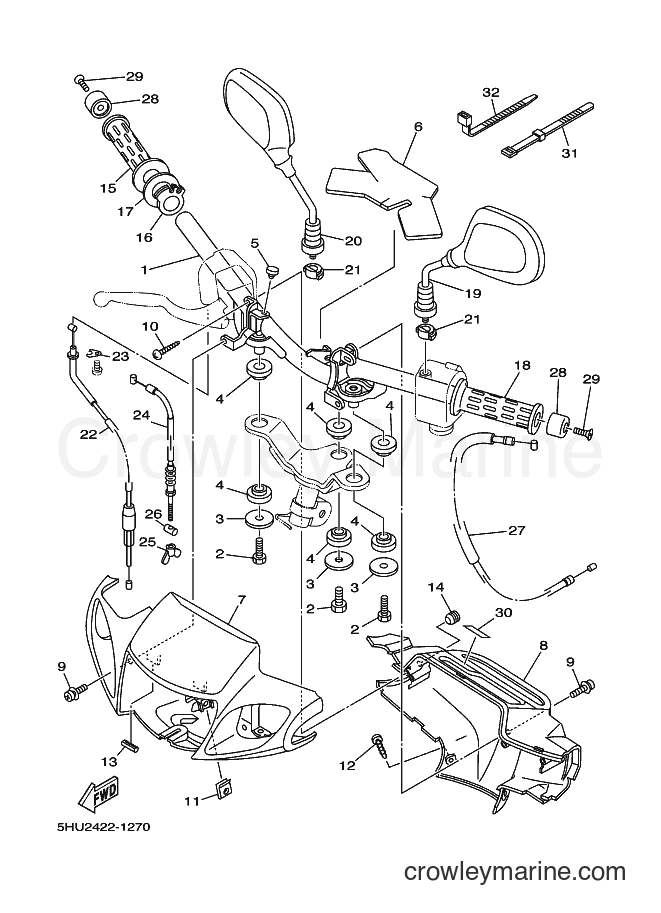

2001 Scooter T105SE - T105SE (5HU2) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T105SE (5HU2) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE
Price unavailable
Bolt
2
Yamaha Motors
Bolt97017-08016-00
Required: 3
BOLT
Supersedes: 97007-08016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
3
Yamaha Motors
Plate Washer90201-08612-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
4
Required: 6
DAMPER
Price unavailable
5
Required: 1
DAMPER, SEAT
Price unavailable
6
Required: 1
DAMPER
Price unavailable
7
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
8
Required: 1
COVER, HANDLEBAR UPPER 2
Price unavailable
Screw With Washer
9
Yamaha Motors
Screw With Washer90159-05121-00
Required: 3
SCREW, WITH WASHER
Supersedes: 90159-05028-00
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details
Truss Screw
12
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
13
Required: 2
DAMPER, LOCATING
Price unavailable
BLIND PLUG
14
Yamaha Motors
BLIND PLUG4US-F6199-00-00
Required: 1
PLUG, BLIND
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
15
Required: 1
GRIP (RIGHT)
Price unavailable
16
Required: 1
TUBE, THROTTLE GUIDE
Price unavailable
Plate Washer
17
Yamaha Motors
Plate Washer90201-261L1-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
18
Required: 1
GRIP
Price unavailable
19
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
20
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
21
Required: 2
GROMMET
Price unavailable
22
Required: 1
CABLE, THROTTLE 1
Price unavailable
23
Required: 1
HOLDER
Price unavailable
24
Required: 1
CABLE, BRAKE
Price unavailable
27
Required: 1
CABLE, STARTER 1
Price unavailable
28
Required: 2
END, GRIP
Price unavailable
30
Required: 1
EMBLEM
Price unavailable
31
Required: 2
BAND, SWITCH CORD
Price unavailable
Hose Clamp
32
Yamaha Motors
Hose Clamp90460-15126-00
Required: 1
CLAMP, HOSE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
