2001 Scooter EW50 - EW50 (5LH3) [020] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

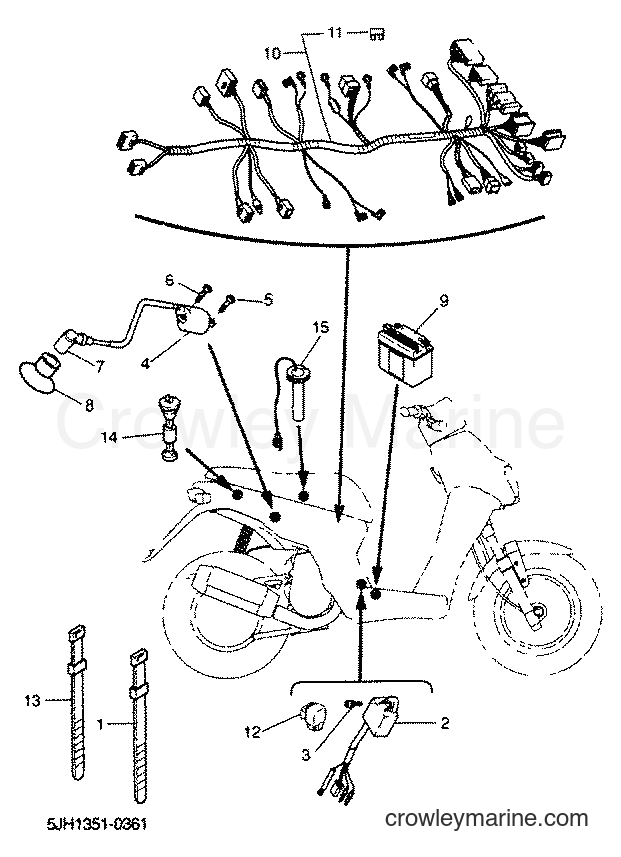

Yamaha Motors EW50 (5LH3) [020] - ELECTRICAL 2
Change View:
Switch Cord Band
1
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 3
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
CDI UNIT ASSEMBLY
2
Yamaha Motors
CDI UNIT ASSEMBLY3KJ-85540-10-00
Required: 1
C.D.I. UNIT ASSY
Cross Ship
Leaves in 2-5 days
$117.99
$100.29
You save $17.70
More details
3
Required: 1
SCREW, BINDING
Price unavailable
IGNITION COIL ASSY
4
Yamaha Motors
IGNITION COIL ASSY3KJ-82310-14-00
Required: 1
IGNITION COIL ASSY
Supersedes: 3KJ-82310-10-00
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details
Hexagon Screw
5
Yamaha Motors
Hexagon Screw90153-06034-00
Required: 1
SCREW, HEXAGON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Hexagon Bolt
6
Yamaha Motors
Hexagon Bolt97017-06016-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plug Cap Assembly
7
Yamaha Motors
Plug Cap AssemblySPC-LB05F-00-00
Required: 1
PLUG CAP ASSY
Supersedes: 3WG-H2370-10-00
Cross Ship
Leaves in 2-5 days
$28.99
$24.64
You save $4.35
More details
Plug Cap Seal
8
Yamaha Motors
Plug Cap Seal3WG-H2372-00-00
Required: 1
SEAL, PLUG CAP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
9
Required: 1
BATTERY ASSY
Price unavailable
10
Required: 1
WIRE HARNESS ASSY
Price unavailable
11
Required: 1
FUSE
Price unavailable
12
Required: 1
RELAY ASSY
Price unavailable
Switch Cord Band
13
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 9
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
14
Required: 1
OIL LEVEL GAUGE ASSY
Price unavailable
15
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
