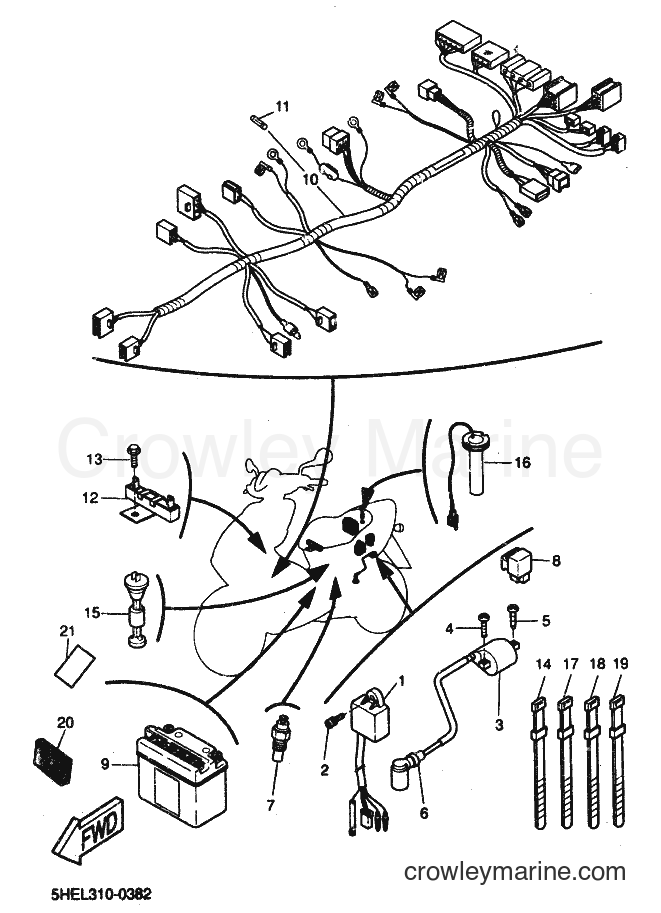

2000 Scooter YQ50L - YQ50L (5KH8) [010] ELECTRICAL2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YQ50L (5KH8) [010] - ELECTRICAL2
Change View:
CDI UNIT ASSEMBLY
1
Yamaha Motors
CDI UNIT ASSEMBLY3KJ-85540-10-00
Required: 1
C.D.I. UNIT ASSY
Cross Ship
Leaves in 2-5 days
$117.99
$100.29
You save $17.70
More details
2
Required: 1
SCREW, BINDING
Price unavailable
IGNITION COIL ASSY
3
Yamaha Motors
IGNITION COIL ASSY3KJ-82310-14-00
Required: 1
IGNITION COIL ASSY
Supersedes: 4BE-82310-01-00
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details
Hexagon Screw
4
Yamaha Motors
Hexagon Screw90153-06034-00
Required: 1
SCREW, HEXAGON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
5
Required: 1
BOLT, WASHER BASED
Price unavailable
6
Required: 1
PLUG CAP ASSY
Price unavailable
7
Required: 1
SENDER, WATER
Price unavailable
Relay Assembly
8
Yamaha Motors
Relay Assembly29U-81950-93-00
Required: 1
RELAY ASSY
Cross Ship
Leaves in 2-5 days
$84.99
$72.24
You save $12.75
More details
YB4LB YUASA BATTERY
9
Yamaha Motors
YB4LB YUASA BATTERYYB4-LB000-00-00
Required: 1
BATTERY ASSY
Supersedes: 4SB-H2110-00-00
Cross Ship
Leaves in 2-5 days
$29.99
$25.49
You save $4.50
More details
BATTERY FOR MERC 200 AND SNOWMOBILE 150E
9
Yamaha Motors
BATTERY FOR MERC 200 AND SNOWMOBILE 150E4CU-H2110-20-00
Required: 1
BATTERY ASSY
Cross Ship
Leaves in 2-5 days
$66.99
$56.94
You save $10.05
More details
10
Required: 1
WIRE HARNESS ASSY
Price unavailable
11
Required: 1
.FUSE
Price unavailable
12
Required: 1
RESISTANCE ASSY
Price unavailable
13
Required: 1
BOLT, WASHER BASED
Price unavailable
Switch Cord Band
14
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 4
BAND SWITCH CORD (249X4.8)
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Oil Level Gauge Assembly
15
Yamaha Motors
Oil Level Gauge Assembly53L-85720-10-00
Required: 1
OIL LEVEL GAUGE ASSY
Supersedes: 3VL-H5720-10-00
Cross Ship
Leaves in 2-5 days
$64.99
$55.24
You save $9.75
More details
16
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
17
Required: 1
CLAMP, WIRE HARNESS 1
Price unavailable
18
Required: 2
CLAMP, WIRE HARNESS 2
Price unavailable
19
Required: 1
CLAMP, WIRE
Price unavailable
20
Required: 2
DAMPER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
