All diagrams for this model

2000 Scooter YQ50L - YQ50L (5KH8) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

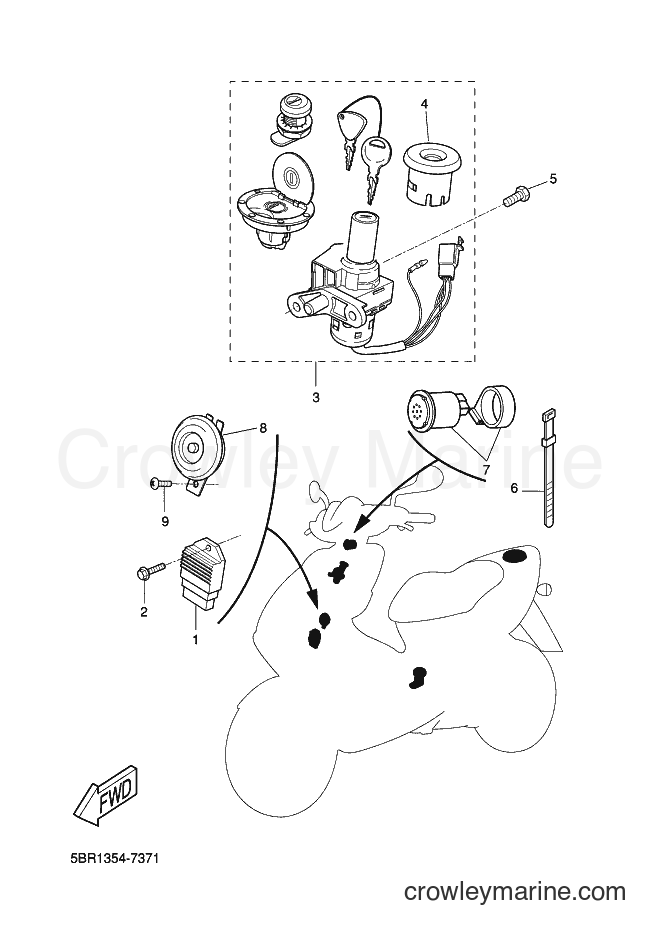

Yamaha Motors YQ50L (5KH8) [010] - ELECTRICAL 1
Change View:
Rectifier & Regulator Assembly
1
Yamaha Motors
Rectifier & Regulator Assembly4VV-H1960-01-00
Required: 1
RECTIFIER & REGULATOR ASSY
Cross Ship
Leaves in 2-5 days
$180.99
$153.84
You save $27.15
More details
2
Required: 1
BOLT, WASHER BASED
Price unavailable
3
Required: 1
KEY SET
Price unavailable
4
Required: 1
.CAP, SWITCH
Price unavailable
BOLT
5
Yamaha Motors
BOLT90109-06851-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
Switch Cord Band
6
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 1
BAND, SWITCH CORD (95.7X2.5)
Supersedes: 4VU-H3936-01-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
7
Required: 1
FLASHER RELAY ASSY
Price unavailable
8
Required: 1
HORN
Price unavailable
Pan Head Screw
9
Yamaha Motors
Pan Head Screw98507-06010-00
Required: 1
SCREW
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
