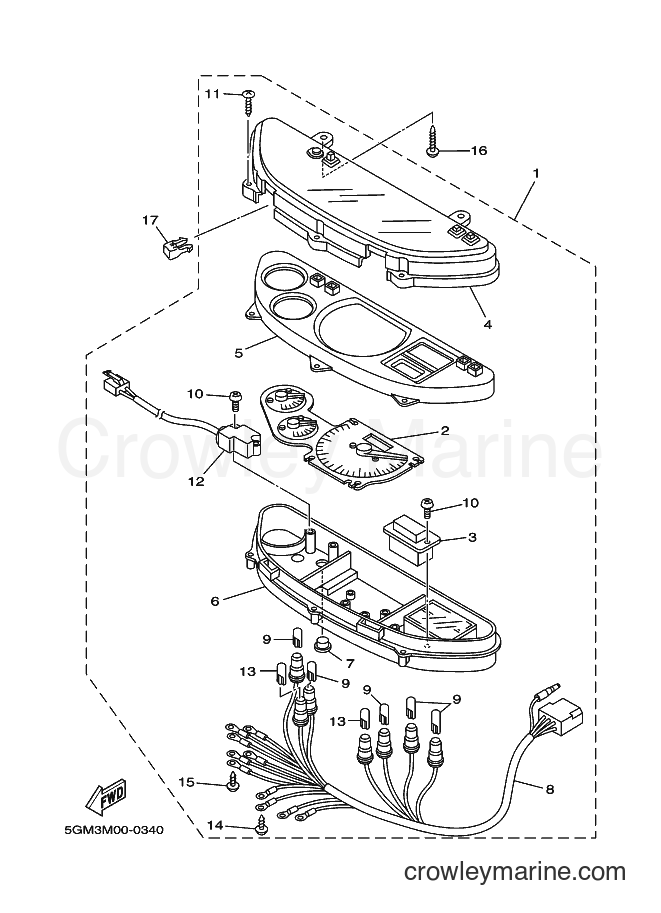

2000 Scooter YP250 - YP250 (5GM3) [040] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP250 (5GM3) [040] - METER
Change View:
1
Required: 1
METER ASSY
Price unavailable
2
Required: 1
. SPEEDOMETER ASSY
Price unavailable
3
Required: 1
. DIGITAL CLOCK ASSY
Price unavailable
4
Required: 1
. LENS, SPEEDOMETER
Price unavailable
5
Required: 1
. COVER, METER PANEL
Price unavailable
6
Required: 1
. CASE, UNDER
Price unavailable
7
Required: 2
. PLUG, BLIND
Price unavailable
8
Required: 1
. SOCKET CORD ASSY
Price unavailable
Obsolete Yamaha Part
9
Yamaha Motors
Obsolete Yamaha Part3GM-83517-00-00
Required: 5
. BULB (12V-1.7W T10)
Supersedes: 1YT-83517-00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Tapping Screw
10
Yamaha Motors
Tapping Screw97707-30512-00
Required: 4
. SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$1.55
$1.32
You save $0.23
More details
Tapping Screw
11
Yamaha Motors
Tapping Screw97707-40016-00
Required: 5
. SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
12
Required: 1
. SWITCH
Price unavailable
4G1-84744-00-XX
13
Yamaha Motors
4G1-84744-00-XX4G1-84744-00-00
Required: 2
. BULB (12V-3.4W T10)
Supersedes: 4R0-83517-00-00
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
14
Required: 4
. SCREW, SPECIAL
Price unavailable
15
Required: 6
. SCREW, TAPPING
Price unavailable
Truss Screw
16
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
17
Required: 2
LOCK 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
