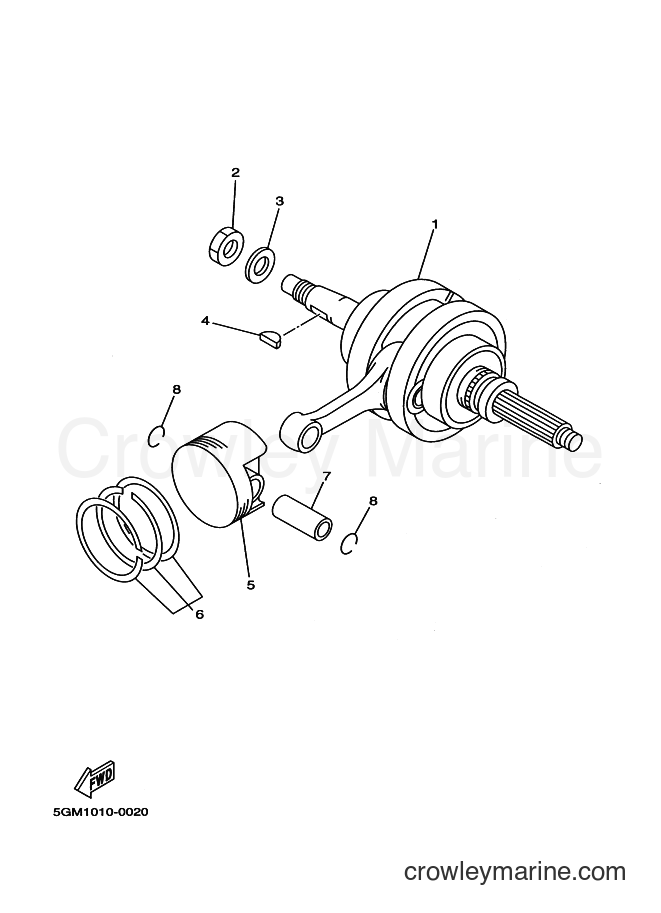

2000 Scooter YP250 - YP250 (5GM2) [090] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP250 (5GM2) [090] - CRANKSHAFT & PISTON
Change View:
1
Required: 1
CRANKSHAFT ASSY
Price unavailable
Nut
2
Yamaha Motors
Nut90170-16425-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Plate Washer
3
Yamaha Motors
Plate Washer90201-160F6-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Woodruff Key
4
Yamaha Motors
Woodruff Key90280-05001-00
Required: 1
KEY, WOODRUFF
Supersedes: 90280-05013-00
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
5
Required: 1
PISTON (STD)
Price unavailable
5
Required: 1
PISTON (1.00MM O/S)
Price unavailable
5
Required: 1
PISTON (0.50MM O/S)
Price unavailable
6
Required: 1
PISTON RING SET (STD)
Price unavailable
6
Required: 1
PISTON RING SET (0.50MM O/S)
Price unavailable
6
Required: 1
PISTON RING SET (1.00MM O/S)
Price unavailable
Piston Pin
7
Yamaha Motors
Piston Pin4JH-11633-00-00
Required: 1
PIN, PISTON
Cross Ship
Leaves in 2-5 days
$42.99
$36.54
You save $6.45
More details
Clip
8
Yamaha Motors
Clip90468-12069-00
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
