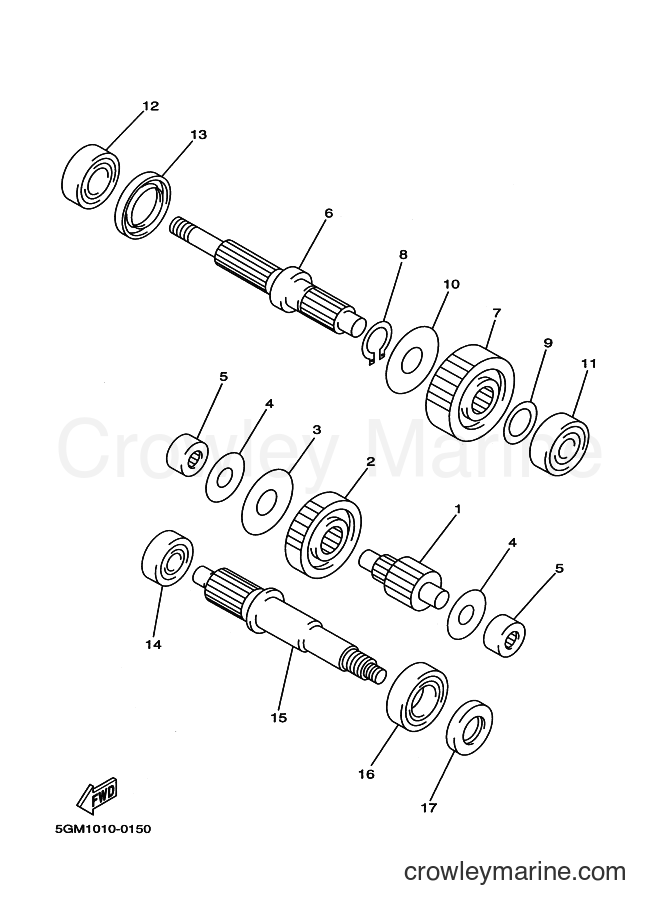

2000 Scooter YP250 - YP250 (5GM2) [010] TRANSMISSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP250 (5GM2) [010] - TRANSMISSION
Change View:
1
Required: 1
AXLE, MAIN (15T)
Price unavailable
2
Required: 1
GEAR, PRIMARY DRIVEN (40T)
Price unavailable
3
Required: 1
WASHER, CONICAL SPRING
Price unavailable
4
Required: 2
WASHER, PLATE
Price unavailable
BEARING CYL. (2NL)
5
Yamaha Motors
BEARING CYL. (2NL)93311-41566-00
Required: 2
BEARING
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
6
Required: 1
AXLE, DRIVE
Price unavailable
7
Required: 1
GEAR, 1ST WHEEL (38T)
Price unavailable
Circle Clip
8
Yamaha Motors
Circle Clip99009-25400-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
9
Yamaha Motors
Plate Washer90201-232K5-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
10
Required: 1
WASHER, CONICAL SPRING
Price unavailable
11
Required: 1
BEARING
Price unavailable
BEARING (89A)
12
Yamaha Motors
BEARING (89A)93306-27206-00
Required: 1
BEARING
Supersedes: 93306-27205-00
Cross Ship
Leaves in 2-5 days
$76.99
$65.44
You save $11.55
More details
13
Required: 1
OIL SEAL
Price unavailable
93306-30212-00
14
Yamaha Motors
93306-30212-0093306-30202-00
Required: 1
BEARING
Supersedes: 93306-30201-00
Cross Ship
Leaves in 2-5 days
$20.99
$17.84
You save $3.15
More details
15
Required: 1
GEAR, PRIMARY DRIVE (15T)
Price unavailable
SD-TYPE OIL SEAL
17
Yamaha Motors
SD-TYPE OIL SEAL93102-25395-00
Required: 1
OIL SEAL
Supersedes: 93102-25299-00
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
