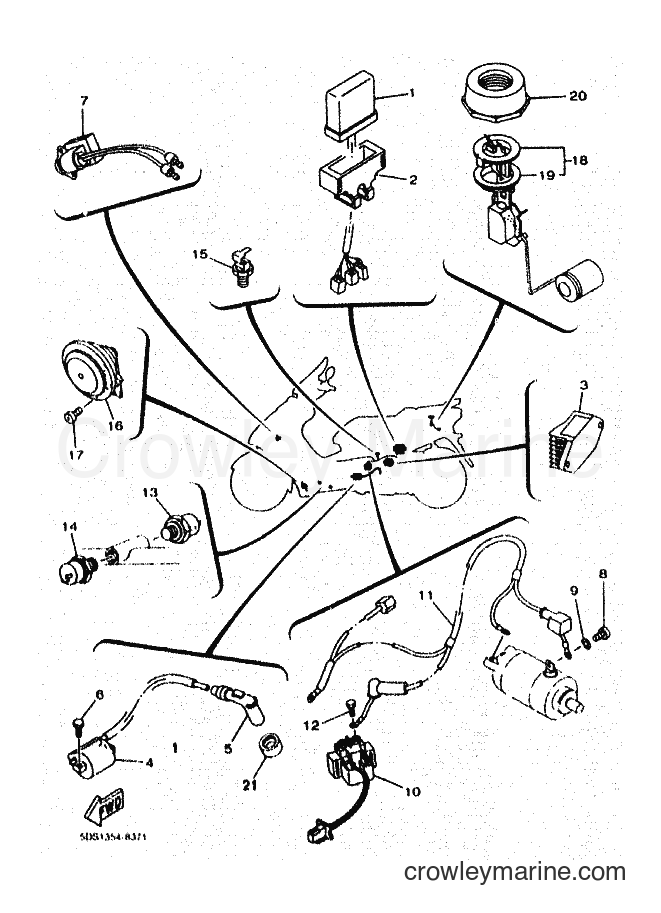

2000 Scooter YP125E - YP125E (5DSF) [999] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP125E (5DSF) [999] - ELECTRICAL 1
Change View:
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
IGNITION COIL ASSY
4
Yamaha Motors
IGNITION COIL ASSY3KJ-82310-14-00
Required: 1
IGNITION COIL ASSY
Supersedes: 3RW-82310-10-00
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details
5
Required: 1
PLUG CAP ASSY
Price unavailable
Hexagon bolt
6
Yamaha Motors
Hexagon bolt97313-06016-00
Required: 2
BOLT
Supersedes: 97002-06016-00
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
7
Required: 1
THERMO SWITCH ASSY
Price unavailable
BOLT
8
Yamaha Motors
BOLT97011-05012-00
Required: 1
BOLT
Supersedes: 97001-05012-00
Cross Ship
Leaves in 2-5 days
$1.35
$1.15
You save $0.20
More details
Spring Washer
9
Yamaha Motors
Spring Washer92907-05100-00
Required: 1
WASHER, SPRING
Supersedes: 92906-05100-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Starter Relay Assembly
10
Yamaha Motors
Starter Relay Assembly3MW-81940-01-00
Required: 1
STARTER SWITCH ASSY
Supersedes: 3MW-81940-00-00
Cross Ship
Leaves in 2-5 days
$89.99
$76.49
You save $13.50
More details
11
Required: 1
CORD, STARTER MOTOR
Price unavailable
BOLT
12
Yamaha Motors
BOLT90101-06576-00
Required: 2
BOLT
Supersedes: 97311-06008-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
13
Required: 1
THERMO SWITCH ASSY
Price unavailable
14
Required: 1
THERMO SWITCH ASSY
Price unavailable
15
Required: 1
SENSOR-THERM 1
Price unavailable
16
Required: 1
HORN
Price unavailable
PAN SCREW
17
Yamaha Motors
PAN SCREW98507-08010-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98501-08010-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
18
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
19
Required: 1
･GASKET, SENDER UNIT
Price unavailable
20
Required: 1
HOUSING, FUEL METER
Price unavailable
21
Required: 1
SEAL, PLUG CAP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
