All diagrams for this model

2000 Scooter YP125E - YP125E (5DSD) [010] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

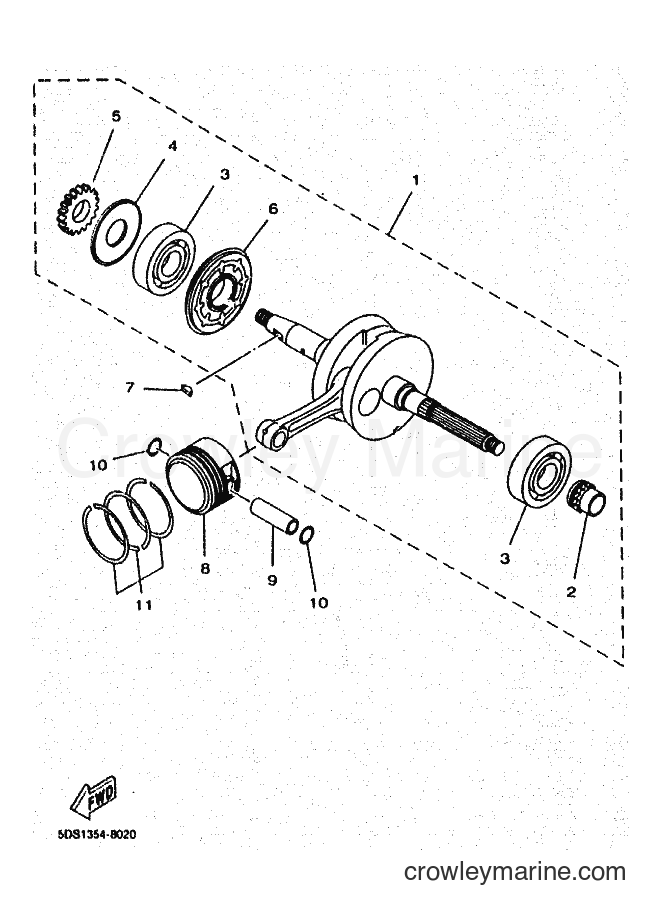

Yamaha Motors YP125E (5DSD) [010] - CRANKSHAFT & PISTON
Change View:
1
Required: 1
CRANKSHAFT ASSY
Price unavailable
2
Required: 1
･SPROCKET, CAM CHAIN
Price unavailable
BEARING
3
Yamaha Motors
BEARING93306-30536-00
Required: 2
･BEARING (B6305C3)
Supersedes: 93306-30509-00
Cross Ship
Leaves in 2-5 days
$33.99
$28.89
You save $5.10
More details
4
Required: 1
･SPACER
Price unavailable
5
Required: 1
･GEAR, PUMP DRIVE
Price unavailable
6
Required: 1
･FILTER ROTARY
Price unavailable
Woodruff Key
7
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
Supersedes: 90280-03045-00
Cross Ship
Leaves in 2-5 days
$8.49
$6.79
You save $1.70
More details
8
Required: 1
PISTON (0.25MM O/S)
Price unavailable
8
Required: 1
PISTON (STD)
Price unavailable
8
Required: 1
PISTON (0.50MM O/S)
Price unavailable
Piston Pin
9
Yamaha Motors
Piston Pin1WG-11633-01-00
Required: 1
PIN, PISTON
Cross Ship
Leaves in 2-5 days
$35.99
$30.59
You save $5.40
More details
11
Required: 1
PISTON RING SET (STD)
Price unavailable
11
Required: 1
PISTON RING SET (0.50MM O/S)
Price unavailable
11
Required: 1
PISTON RING SET (0.25MM O/S)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
